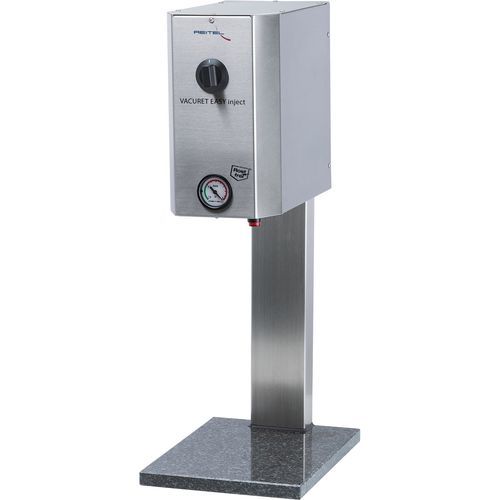

Dynamic mixer VACURET EASY inject

verticalbatchsolid/liquid

Description
The VACURET vacuum mixers are designed for bubble-free, homogeneous mixing of plaster, investment materials, alginates and a range of resins and polymers used in dental and laboratory applications. The VACURET EASY inject is the entry-level model of the VACURET range. It operates at a fixed speed and generates vacuum via a compressor connection; the vacuum level is reached rapidly. Mixing time is controlled with a manual timer and the mixing bowl is released by venting the vacuum. A two-stage, easy-change filter system protects motor and vacuum components. A 400 ml plastic mixing bowl is included; additional bowl sizes from 75 ml to 1000 ml are available in plastic or stainless steel.

Technical features

• Compressed-air connection (no pump included) — 6 bar / 50 l/min
• Wall-mounted design, incl. 400 ml mixing bowl (plastic)
• Easy, bubble-free mixing of plaster, investment material, alginates, resins and polymers
• Two-stage, easy-exchange filter system protecting motor and pump
• Manual mechanical timer
• Fixed speed: 370 rpm
• Max. vacuum: 90 % (adjustable)
• Power consumption: 300 W
• Line voltage: 230 V / 50–60 Hz
• Sound pressure level: ≤ 70 dB(A)
• Dimensions (H/W/D): 250 / 150 / 280 mm (incl. stand: 670 / 215 / 355 mm)
• Weight: 8 kg (15 kg incl. stand)
• Housing: stainless steel
• Order number: 10606200

Characteristics / technical specifications

• Power: 300 W
• Voltage: 230 V / 50–60 Hz
• Speed: 370 rpm (fixed)
• Max. vacuum: 90 % (regulable)
• Timer: mechanical manual timer
• Filter: two-stage, easily replaceable
• Mixing bowls: 400 ml plastic included; optional 75–1000 ml (plastic or stainless steel)
• Dimensions: H 250 mm (H incl. stand 670 mm) × W 150 mm (incl. stand 215 mm) × D 280 mm (incl. stand 355 mm)
• Weight: 8 kg (15 kg with stand)
• Housing material: stainless steel
• Compressed-air connection: 6 bar / 50 l/min
• Sound pressure: ≤ 70 dB(A)
• Suitable for: plaster, investment material, alginate, resins, polymers, 3D-print materials
• Order no.: 10606200
