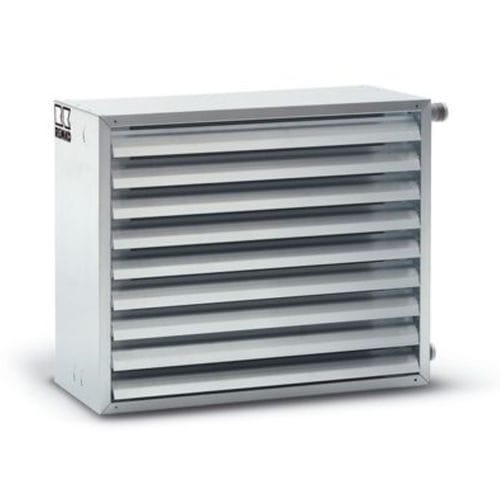

Water heater PWW series

Hot water heaters as supplement to hot water heating plant Best suited for warehouses and supermarkets The sophisticated design is suitable for both wall and ceiling installation. With a heat output of 4 to 135 kW, an optimum expansion of existing or planned hot water heating systems is possible at any time. The load-bearing, galvanised, solid steel sheet housings are already supplied. The air discharge fins are individually infinitely variable. A particularly efficient and single-phase Ziehl-Abegg EC fan is installed as standard. Fitted as standard with a Ziehl-Abegg EC fan Speed regulation 0-10V Low spatial requirements Extremely low noise by using optimum coordinated components Extremely easy to service Painted design, optional The supply air is optimally injected via the injection vent; the position of the air deflection vent influences the air velocity and the outlet temperature of the total air flow. With this technology, these PWW devices achieve larger penetration distances and faster heating of the warehouses to be climatized. The suction of the already heated room air results in the fact that different climatized air layers cannot rise. It creates uniformly distributed heating of the room. The subsequent installation of the injection vent on your device is possible without difficulty and without much effort. The slat position can be controlled electrically via an optional control.
