Absolute rotary encoder RESOLUTE™ REXA30
opticalnon-contactIP64

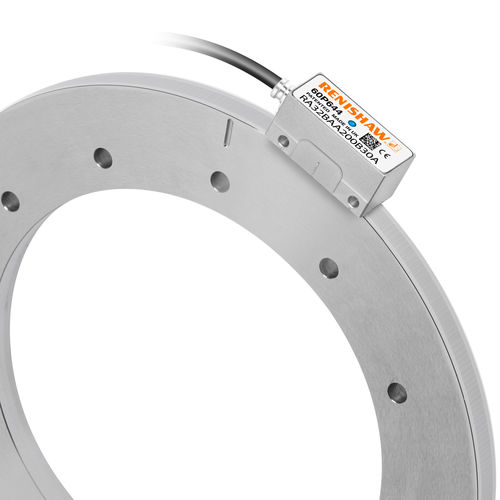

Absolute rotary encoder - RESOLUTE™ REXA30 - RENISHAW - optical / non-contact / IP64
Absolute rotary encoder - RESOLUTE™ REXA30 - RENISHAW - optical / non-contact / IP64
Absolute rotary encoder - RESOLUTE™ REXA30 - RENISHAW - optical / non-contact / IP64 - image - 2
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical
Construction
non-contact
Protection level
IP64
Other characteristics
high-resolution, high-accuracy
Housing diameter

Min.: 52 mm
(2.05 in)

Max.: 417 mm
(16.42 in)

Description

What is RESOLUTE? RESOLUTE is a true absolute, fine pitch optical encoder system that has excellent dirt immunity, and an impressive specification that breaks new ground in position feedback. It is the world's first absolute encoder capable of 32-bit resolution at 36 000 rev/min. Ultra low SDE and jitter result in a rotary encoder system that outperforms any other encoder in its class. What is REXA30 ring? REXA30 is a one-piece stainless steel ring with 30 µm pitch absolute graduations marked directly on the periphery. Its larger cross-section allows for the reduction in all installation errors apart from eccentricity, which is easily corrected using the average result of two Resolute readheads. Featuring total installed accuracy up to ±1 arc second, zero coupling losses, and exceptional repeatability. REXA30 is available in a range of sizes (Ø52 mm to Ø417 mm), all of which have a large internal diameter for flexible integration. The non-contact format eliminates backlash, shaft wind-up (torsion) and other mechanical hysteresis errors that are inherent in traditional enclosed encoders.
