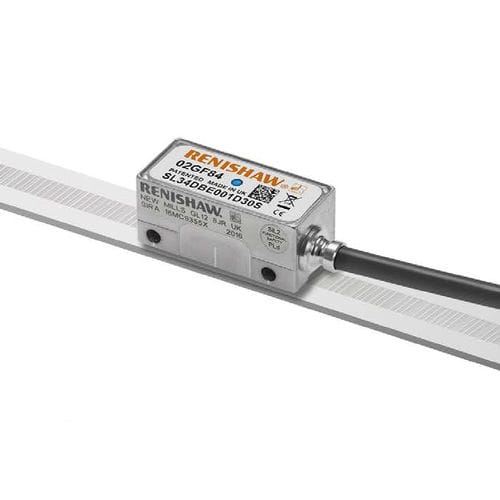

Absolute linear encoder RESOLUTE™ FS RSLA30

opticalnon-contactIP64

What is RESOLUTE FS? RESOLUTE FS (Functional Safety) is a true absolute, fine pitch optical encoder system that has excellent dirt immunity, and an impressive specification that breaks new ground in position feedback. It is the world's first absolute encoder capable of 1 nm resolution at up to 100 m/s. Ultra low SDE and jitter result in a rotary encoder system that outperforms any other encoder in its class. Certified to SIL2 and PLd for use in functional safety applications. What is RSLA30 scale? RSLA30 is a stainless steel spar scale featuring our 30 µm pitch absolute scale code. It is comparable to fine pitch glass scales and offers a total accuracy (including slope and linearity) better than ±4 µm over a 5 m length. It can also be coiled for simple storage and handling yet once uncoiled behaves as a spar scale. System designers can choose between specially formulated adhesive tape or mechanical clips to suit mounting requirements. Both mounting methods allow for independent thermal expansion to that of the substrate.
