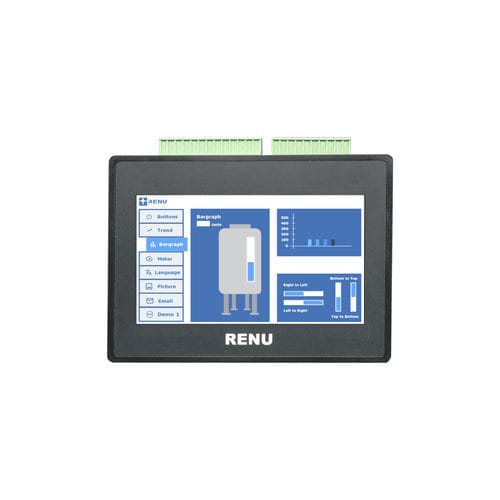

Resistive touch screen HMI FP2043TN-LE1208P-A0402U-V3

panel-mount480 x 272RISC

Built in Controller function programmable by installed IEC 61131-3 based software. Local I/O provide Digital and Analogue Inputs and Outputs for robust cost effective application implementation. Pluggable I/O Module (Analogue/Digital) for built in Controller function for additional I/O if required. Communication Interface:., CE Certified, UKCA, UL Listed (Class I Div 2), RoHS compliant The Renu Model FP2043TN-LE1208P-A0402U-V3 offers I/O on the HMI itself giving a robust and cost effective possibility for a PLC+ HMI type local application. An expandable port for add on I/O Module is also provided if required. The I/O can be both Digital and Analogue type, input or output. Analogues inputs can be configured for current/ voltage/ Thermocouple/ RTD etc so that all local monitoring points are covered. With 2 high-speed single-phase HSC inputs, this HMI can handle up to 2 pairs of 200KHz. This feature provides an ideal solution for a wide range of industrial applications where local monitoring and control is needed. Applications can range from local operator interface, remote monitoring, monitoring of machinery for preditive maintenance, and also building control, car park control and a host of other applications. The Ethernet port provides networking capability and the serial ports provides capability to interface local serial devices on Modbus and other protocols built into the HMI/Controller. Networked data can also be directly available to the SCADA for monitoring With Industrial specifications compliant and extensively tested for vibration, it provides an ideal local controller for a variety of Larger PLC/ DCS systems
