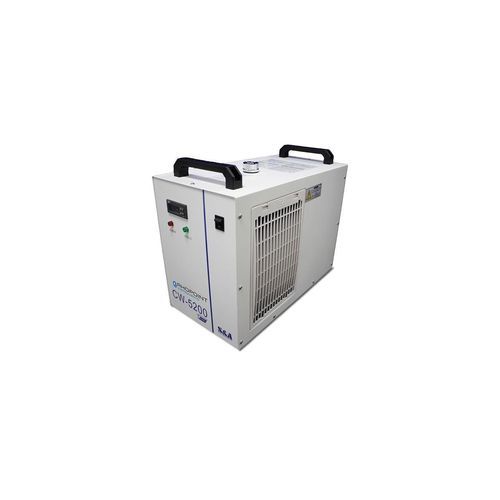

Water recirculation chiller MFFT

industrialcompactbrazed plate

Product overview

• Ultra-compact water recirculating chiller designed for Minimum Film Forming Temperature (MFFT) instruments
• Cooling capacity 480 W (@17°C set point)
• Supplied ready-to-use, no customer configuration required
• Cost-effective operation and purchase
• OEM-friendly form factor and fittings

Physical Attributes
Dimensions: 380 mm (H) x 180 mm (W) x 435 mm (D)
Weight: Dry 20 kg; Wet 21 kg
Noise level: 64 dB(A) (optional manual adjustment)
Toolless access: No
Cooling capacity (listed): 0.5 kW (setpoint 20°C, ambient 20°C)

Temperature Control Attributes
Technology: Vapor compression refrigeration
Evaporator: Brazed plate heat exchanger
Duty at +20°C ambient, setpoint +20°C: 500 W
Duty at +20°C ambient, setpoint +15°C: 300 W
Refrigerant & charge: R134a, 360 g
Temperature range (standard): +4°C to +35°C (setpoint dependent on load)
Temperature range (extended): -10°C to +35°C
Control method: Continuous running, duty settable; low temperature fridge cutoff
Temperature stability (with constant load): ±0.1°C
Maximum total heat rejection (THR): 850 W
Ambient air temperature range: up to +35°C

Water Circuit Attributes
System volume: 0.64 L
Pump type: Sanso 24 V DC brushless centrifugal pump; 1.9 bar(d/h) 3 L/min (o/f)
Pump capability: 3.5 L/min @ 1 bar
Pressure control (settable relief valve): N/A
Standard fittings: Pushfit 12 mm
Chemical compatibility: Tap water, DI water

Electrical Attributes
Supply: 90–264 Vac, 1-/2~ 50–60 Hz; U-spec: 2 A @ 115 Vac, 1 A @ 230 Vac; wiring L+N+E or L1+L2+E
Overcurrent fault - cleared restart mode: Automatic

Safety Interlocks, Protections, Standards & Indicators
1st party approvals: CE
3rd party approvals: To be confirmed
Empty/half/full fluid reservoir indicators and low fluid flow alarm: Not fitted
Temperature out of range alarm: Not fitted
Compressor HP switch: Standard, via compressor control PCB
Motor thermal overload: Not fitted
Emergency off: Standard, via fuse
Warranty options: 2 year parts, 1 year labour; enhanced warranty options available
Interlock restored, restart mode: Automatic

Notes
Listed duty/capacity values and temperature ranges are setpoint- and load-dependent. The unit is supplied as a compact water recirculating and chilling unit intended for use with Minimum Film Forming Temperature instruments.
