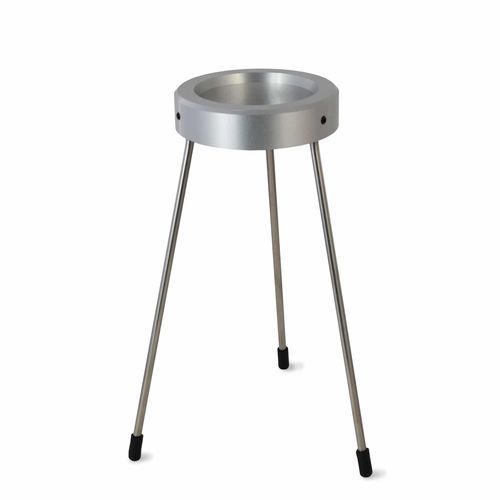

Measuring device stand

Product summary

• Stand suitable for use with Rhopoint DIN, ASTM, AFNOR, ISO and BS flow cups
• Supplied with a certificate of conformity

Description
The Rhopoint flow cups measure the kinematic viscosity of paints, inks, varnishes and similar products by timing flow through a calibrated orifice. The stand keeps the cup securely positioned for consistent timed measurements. Flow times (seconds) can be converted to centistokes (cSt) using calibration data or a viscosity calculator.

What is viscosity?
Viscosity is a fluid's resistance to flow, expressing internal friction between layers. Measuring flow time through a standard orifice provides a relative kinematic viscosity value, commonly reported in seconds and convertible to cSt.

Usage and compatibility
The viscosity flow cup stand RL-A-FC-STAND is designed for use with Rhopoint DIN, ASTM, AFNOR, ISO and BS flow cups (cups sold separately). It secures the cup for repeatable timing and is supplied with a certificate of conformity.

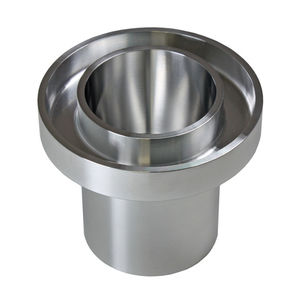

Products / Flow cups (selection)

• BS FLOW CUP — BS 3900 (1971) Old Specification (B2) — RL-A-FC-PTA6/B2 — Orifice 2.38 mm (0.09”) — Viscosity range 38–71 cSt — Flow times 30 s–300 s
• BS FLOW CUP — BS 3900 (1971) Old Specification (B3) — RL-A-FC-PTA6/B3 — Orifice 3.17 mm (0.12”) — Viscosity range 38–147 cSt — Flow times 30 s–300 s
• BS FLOW CUP — BS 3900 (1971) Old Specification (B4) — RL-A-FC-PTA6/B4 — Orifice 3.97 mm (0.16”) — Viscosity range 71–455 cSt — Flow times 30 s–300 s
• BS FLOW CUP — BS 3900 (1971) Old Specification (B5) — RL-A-FC-PTA6/B5 — Orifice 4.76 mm (0.19”) — Viscosity range 299–781 cSt — Flow times 30 s–300 s
• BS FLOW CUP — BS 3900 (1971) Old Specification (B6) — RL-A-FC-PTA6/B6 — Orifice 7.14 mm (0.28”) — Viscosity range 781–1650 cSt — Flow times 30 s–300 s
• DIN FLOW CUP — DIN 53211 (2 mm) — RL-A-FC-DIN2 — Orifice 2.00 mm (0.08”) — Viscosity range 5–30 cSt — Flow times 25 s–150 s
• DIN FLOW CUP — DIN 53211 (4 mm) — RL-A-FC-DIN4 — Orifice 4.00 mm (0.16”) — Viscosity range 112–685 cSt — Flow times 25 s–150 s
• DIN FLOW CUP — DIN 53211 (6 mm) — RL-A-FC-DIN6 — Orifice 6.00 mm (0.24”) — Viscosity range 550–1500 cSt — Flow times 25 s–150 s
• DIN FLOW CUP — DIN 53211 (8 mm) — RL-A-FC-DIN8 — Orifice 8.00 mm (0.31”) — Viscosity range 1200–3000 cSt — Flow times 25 s–150 s
• FORD FLOW CUP — ASTM D1200 No.1 — RL-A-FC-ASTM1 — Orifice 2.10 mm (0.08”) — Viscosity range 10–35 cSt — Flow times 55 s–100 s
• FORD FLOW CUP — ASTM D1200 No.2 — RL-A-FC-ASTM2 — Orifice 2.80 mm (0.11”) — Viscosity range 25–120 cSt — Flow times 40 s–100 s
• FORD FLOW CUP — ASTM D1200 No.3 — RL-A-FC-ASTM3 — Orifice 3.40 mm (0.13”) — Viscosity range 49–220 cSt — Flow times 30 s–100 s
• FORD FLOW CUP — ASTM D1200 No.4 — RL-A-FC-ASTM4 — Orifice 4.10 mm (0.16”) — Viscosity range 70–370 cSt — Flow times 30 s–100 s
• FORD FLOW CUP — ASTM D1200 No.5 — RL-A-FC-ASTM5 — Orifice 5.80 mm (0.23”) — Viscosity range 200–1200 cSt — Flow times 30 s–100 s
• ISO/ASTM FLOW CUP — BS EN ISO 2431 / ASTM D5125 (3 mm) — RL-A-FC-ISO3 — Orifice 3.00 mm (0.12”) — Viscosity range 7–42 cSt — Flow times 30 s–100 s
• ISO/ASTM FLOW CUP — BS EN ISO 2431 / ASTM D5125 (4 mm) — RL-A-FC-ISO4 — Orifice 4.00 mm (0.16”) — Viscosity range 35–135 cSt — Flow times 30 s–100 s
• ISO/ASTM FLOW CUP — BS EN ISO 2431 / ASTM D5125 (5 mm) — RL-A-FC-ISO5 — Orifice 5.00 mm (0.20”) — Viscosity range 91–325 cSt — Flow times 30 s–100 s
• ISO/ASTM FLOW CUP — BS EN ISO 2431 / ASTM D5125 (7 mm) — RL-A-FC-ISO7 — Orifice 6.00 mm (0.24”) — Viscosity range 188–684 cSt — Flow times 30 s–100 s
• ISO/ASTM FLOW CUP — BS EN ISO 2431 / ASTM D5125 (8 mm) — RL-A-FC-ISO8 — Orifice 8.00 mm (0.31”) — Viscosity range 600–2000 cSt — Flow times 30 s–100 s
• AFNOR FLOW CUP — NF T30-014 (2.5 mm) — RL-A-FC-AFNOR/2.5 — Orifice 2.50 mm (0.10”) — Viscosity range 5–140 cSt — Flow times 30 s–100 s
• AFNOR FLOW CUP — NF T30-014 (4 mm) — RL-A-FC-AFNOR/4 — Orifice 4.00 mm (0.16”) — Viscosity range 50–1100 cSt — Flow times 30 s–100 s
• AFNOR FLOW CUP — NF T30-014 (6 mm) — RL-A-FC-AFNOR/6 — Orifice 6.00 mm (0.24”) — Viscosity range 510–5100 cSt — Flow times 30 s–100 s
• AFNOR FLOW CUP — NF T30-014 (8 mm) — RL-A-FC-AFNOR/8 — Orifice 8.00 mm (0.31”) — Viscosity range 700–11500 cSt — Flow times 30 s–100 s
• FRIKMAR FLOW CUP — DIN 53211 (2 mm) — RL-A-FC-FRIKMAR/2 — Orifice 2.00 mm (0.08”) — Viscosity range 15–30 cSt — Flow times 25 s–150 s
• FRIKMAR FLOW CUP — DIN 53211 (4 mm) — RL-A-FC-FRIKMAR/4 — Orifice 4.00 mm (0.16”) — Viscosity range 112–685 cSt — Flow times 25 s–150 s
• FRIKMAR FLOW CUP — DIN 53211 (6 mm) — RL-A-FC-FRIKMAR/6 — Orifice 6.00 mm (0.24”) — Viscosity range 550–1500 cSt — Flow times 25 s–150 s
• FRIKMAR FLOW CUP — DIN 53211 (8 mm) — RL-A-FC-FRIKMAR/8 — Orifice 8.00 mm (0.31”) — Viscosity range 1200–3000 cSt — Flow times 25 s–150 s

Technical specifications

• Material: Aluminium alloy; stainless steel orifice where indicated
• Commodity Code: 9027 8091
• Weight: 200–300 g (depending on model)
• Compatibility: Designed for use with Rhopoint DIN, ASTM, AFNOR, ISO and BS viscosity flow cups
• Supply: Supplied with a certificate of conformity
• Manufacturer / Brand: Paintlab
• SKU: RL-A-FC-STAND
