Overview

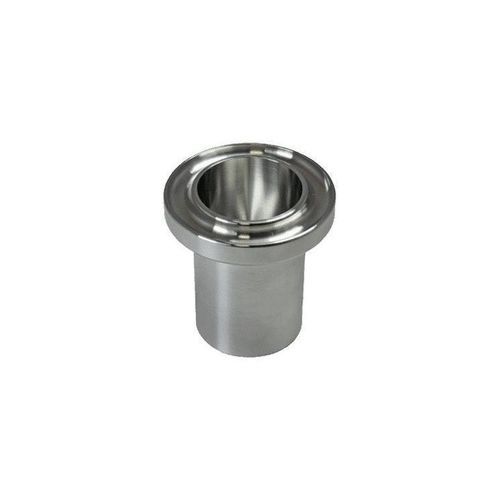

The Rhopoint Flow Cups measure the viscosity of paints, inks, varnishes and similar fluids by recording orifice flow time. Results can be converted to kinematic viscosity (cSt) using a viscosity calculator.

Key features

• Orifice diameters available: 3 mm – 8 mm (0.12" – 0.31")
• Viscosity (kinematic) range covered: approximately 7 – 2000 cSt (depending on cup/orifice)
• Typical flow times: 30 – 100 seconds (dependent on orifice and fluid)
• Supplied with a certificate of conformity
• Sheen equivalents: Sheen 417/3, 417/4, 417/5, 417/6 & 417/8 equivalents

Construction & calibration
Manufactured from high grade aluminium alloy with stainless steel orifices. Flow cups can be supplied with UKAS / ISO 17025 certified standard oils to verify measurement performance and calibration.

How it works
Viscosity describes a fluid's resistance to flow (shear). The flow cup measures the time for a fluid to pass through a defined orifice; this flow time is used as a practical relative measurement and can be converted to centistokes (cSt).

Product range (summary)
Product / Order code / Orifice diameter / Viscosity range / Flow times
Flow Cups to BS EN ISO 2431, ASTM D5125 – RL-A-FC-ISO3 – 3 mm (0.12”) – 7 - 42 cSt – 30s - 100s
Flow Cups to BS EN ISO 2431, ASTM D5125 – RL-A-FC-ISO4 – 4 mm (0.16”) – 35 - 135 cSt – 30s - 100s
Flow Cups to BS EN ISO 2431, ASTM D5125 – RL-A-FC-ISO5 – 5 mm (0.20”) – 91 - 325 cSt – 30s - 100s
Flow Cups to BS EN ISO 2431, ASTM D5125 – RL-A-FC-ISO6 – 6 mm (0.24”) – 188 - 684 cSt – 30s - 100s
Flow Cups to BS EN ISO 2431, ASTM D5125 – RL-A-FC-ISO8 – 8 mm (0.31”) – 600 - 2000 cSt – 30s - 100s

Additional product notes
Orifices manufactured from stainless steel. Weight typically 200 - 300 g depending on model. Commodity code 9027 8091.

Technical specifications

• Standards: ISO 2431 and ASTM D5125
• Orifice diameters: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm
• Viscosity ranges (examples by orifice): 3 mm: ~7–42 cSt; 4 mm: ~35–135 cSt; 5 mm: ~91–325 cSt; 6 mm: ~188–684 cSt; 8 mm: ~600–2000 cSt
• Flow time window: approximately 30–100 s (application dependent)
• Material: high grade aluminium alloy body; stainless steel orifices
• Weight: ~200–300 g (model dependent)
• Supplied with certificate of conformity; UKAS / ISO 17025 certified standard oils available for calibration verification
• Sheen equivalents: Sheen 417/3, 417/4, 417/5, 417/6 & 417/8
• Typical order codes / SKUs: RL-A-FC-ISO (product family) with specific SKUs per orifice (e.g. RL-A-FC-ISO3, RL-A-FC-ISO4, RL-A-FC-ISO5, RL-A-FC-ISO6, RL-A-FC-ISO8)
