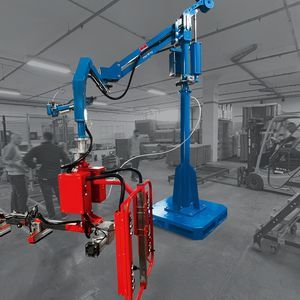

Pneumatic manipulator COLUMN MANIPULATOR

with gripping toolfor liftingATEX

The micro manipulator is a slender and lightweight model designed for environments with limited space and light loads. This machine offers fast movements and is equipped with pneumatic brakes, as well as anti-fall and anti-tilting safety systems to ensure safety and ergonomics. An accumulation tank ensures the availability of air even in case of pneumatic interruptions. It is available on request in ATEX and 4.0 versions, offering maximum versatility in various industrial applications. Tecnichal data 1. Supply: 7-bar compressed air 2. Max load capacity: from 20 to 50 kg tool not included 3. Mass: from 110 to 700 Kg 4. Axis 1 rot. angle: 360° 5. Axis 12 rot. angle: 330° 6. Vert range: from 500 to 1200 mm 7. Max radius: from 1000 to 2000 mm 8. Min radius: from 300 to 500 mm 9. Standard colour: RAL 5015 10. Platform base: from 500x500 to 1000x1000 mm
