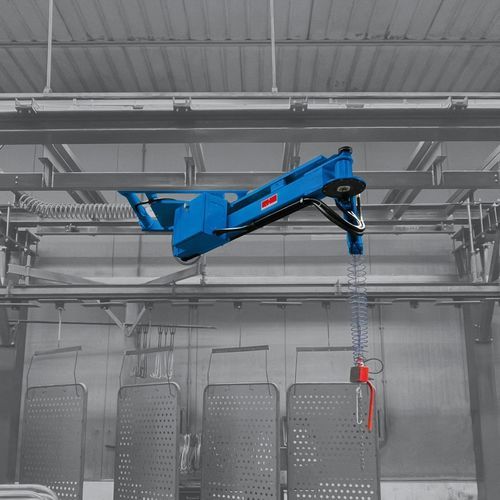

Pneumatic manipulator SLIDING CEILING MANIPULATOR

electricvacuumbag

The bags manipulator is specifically designed for handling sacks. It includes an electric pump, a suction tube (vacuum pump/suction cup), an electrical panel for pump management (with a thermostat), and a balancing system with a depression membrane. An accumulation tank ensures the availability of air even in the absence of pneumatic power. It can be customized upon request in ATEX and 4.0 versions, offering maximum versatility in industrial applications. Tecnichal data 1. Supply: 7-bar compressed air 2. Max load capacity: 200 kg tool not included 3. Mass: from 220 to 250 Kg 4. Axis 1 rot. angle: 360° 5. Axis 12 rot. angle: 330° 6. Vert range: from 1600 to 2200 mm 7. Max radius: from 2000 to 4000 mm 8. Min radius: from 300 to 700 mm 9. Standard colour: RAL 5015 10. Platform base: 600x600 sp 30 mm
