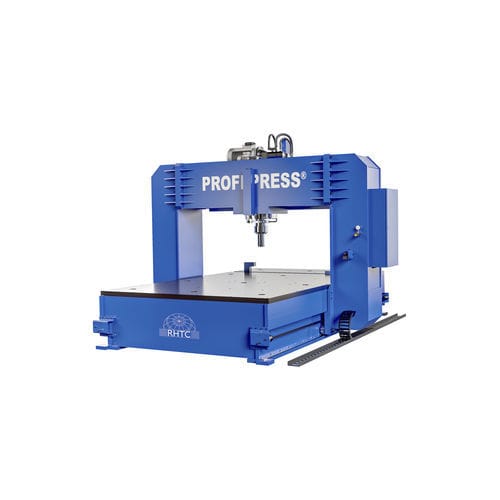

Hydraulic press PPTLM-160

straighteningwith motorized movable pistonframe

This 160 ton gantry press is eminently suitable for straightening large and heavy structures and sheets. These Profi Press portal presses have a movable frame and a movable cylinder. Thanks to these features you have an easy access the different pressing and straightening points of the material. The longitudinal displacement of the frame is carried out by a frequency inverter and cogged belt to ensure precise slides. The lateral movement of the cylinder / headstock is motorised. The large, lower table (1.800 x 3.000 mm) facilitates the loading and unloading of large parts and sheets. Operation of this 160 ton gantry press is carried out by means of a wireless remote control and an emergency stop. All our hydraulic portal presses meet and satisfy the essential health and safety requirements in accordance with the CE standards. Furthermore, we deliver our hydraulic presses with a warranty of two years. Features Motorised movable portal Motorised movable cylinder Cylinder stroke is easy to regulate with the end-stroke switches Selector for manual / semi-automatic operation Pressure regulator and manometer Wireless remote control Optional accessories Milling flat table (3000 x 1800 x 75 mm) Small cylinders fitted in the lower table to lift pieces, connected to a second hydraulic group Additional extension for the cylinder Larger table size
