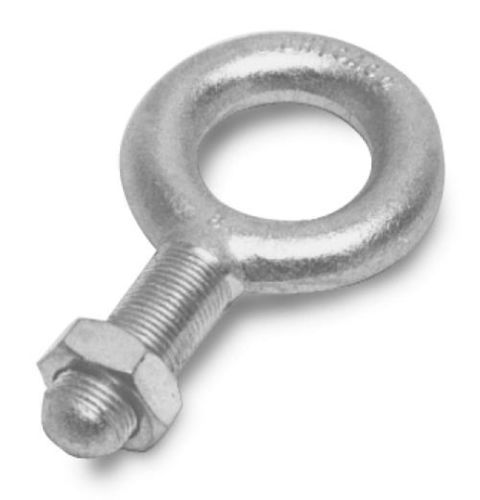

Zinc-coated steel screw with eye 17705steelmetalthreaded
Add to favorites
Compare this product
Characteristics
- Materials
- zinc-coated steel, steel
- Other characteristics
- metal, threaded
- Diameter
Max.: 28.448 mm
(1.12 in)Min.: 6.35 mm
(0.25 in)- Length
Max.: 188.98 mm
(7.44 in)Min.: 57.15 mm
(2.25 in)
Description
Product overview
Load cell eye bolt dimensions
Part # | A | B | C | D | E | Thread Size | Safe Load*
Mild Steel
17705 | 2.25 in | 1.25 in | 0.75 in | 1.00 in | 0.25 in | 1/4-28 UNF | 500 lb
17707 | 2.91 in | 1.66 in | 1.00 in | 1.25 in | 0.33 in | 3/8-24 UNF | 1,300 lb
17709 | 3.56 in | 2.06 in | 1.19 in | 1.50 in | 0.44 in | 1/2-20 UNF | 2,400 lb
17711 | 4.25 in | 2.50 in | 1.37 in | 1.75 in | 0.56 in | 5/8-18 UNF | 4,000 lb
17713 | 4.81 in | 2.81 in | 1.50 in | 2.00 in | 0.66 in | 3/4-16 UNF | 5,000 lb
17715 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-12 UNF | 9,000 lb
17716 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-14 UNS | 9,000 lb
17704 | 2.25 in | 1.25 in | 0.75 in | 1.00 in | 0.25 in | 1/4-20 UNC | 500 lb
17706 | 2.91 in | 1.66 in | 1.00 in | 1.25 in | 0.33 in | 3/8-16 UNC | 1,300 lb
17708 | 3.56 in | 2.06 in | 1.19 in | 1.50 in | 0.44 in | 1/2-13 UNC | 2,400 lb
17710 | 4.25 in | 2.50 in | 1.37 in | 1.75 in | 0.56 in | 5/8-11 UNC | 4,000 lb
17712 | 4.81 in | 2.81 in | 1.50 in | 2.00 in | 0.66 in | 3/4-10 UNC | 5,000 lb
17714 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-8 UNC | 9,000 lb
17717 | 7.44 in | 4.44 in | 2.19 in | 3.00 in | 1.12 in | 1 1/4-7 UNC | 15,000 lb
*Do not exceed the safe load
Resources
Technical features / specifications
- Material: mild steel (low carbon steel)
- One jam nut included with each eye bolt
- Zinc plated finish as indicated per part
Load cell eye bolt dimensions
Part # | A | B | C | D | E | Thread Size | Safe Load*
Mild Steel
17705 | 2.25 in | 1.25 in | 0.75 in | 1.00 in | 0.25 in | 1/4-28 UNF | 500 lb
17707 | 2.91 in | 1.66 in | 1.00 in | 1.25 in | 0.33 in | 3/8-24 UNF | 1,300 lb
17709 | 3.56 in | 2.06 in | 1.19 in | 1.50 in | 0.44 in | 1/2-20 UNF | 2,400 lb
17711 | 4.25 in | 2.50 in | 1.37 in | 1.75 in | 0.56 in | 5/8-18 UNF | 4,000 lb
17713 | 4.81 in | 2.81 in | 1.50 in | 2.00 in | 0.66 in | 3/4-16 UNF | 5,000 lb
17715 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-12 UNF | 9,000 lb
17716 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-14 UNS | 9,000 lb
17704 | 2.25 in | 1.25 in | 0.75 in | 1.00 in | 0.25 in | 1/4-20 UNC | 500 lb
17706 | 2.91 in | 1.66 in | 1.00 in | 1.25 in | 0.33 in | 3/8-16 UNC | 1,300 lb
17708 | 3.56 in | 2.06 in | 1.19 in | 1.50 in | 0.44 in | 1/2-13 UNC | 2,400 lb
17710 | 4.25 in | 2.50 in | 1.37 in | 1.75 in | 0.56 in | 5/8-11 UNC | 4,000 lb
17712 | 4.81 in | 2.81 in | 1.50 in | 2.00 in | 0.66 in | 3/4-10 UNC | 5,000 lb
17714 | 6.06 in | 3.56 in | 1.81 in | 2.50 in | 0.87 in | 1-8 UNC | 9,000 lb
17717 | 7.44 in | 4.44 in | 2.19 in | 3.00 in | 1.12 in | 1 1/4-7 UNC | 15,000 lb
*Do not exceed the safe load
Resources
- Load Cell Eye Bolts Catalog Page (PDF)
- Load Cell Mounting Hardware Safety Guidelines (PDF)
Technical features / specifications
- Material: Mild steel
- One jam nut included with each eye bolt
- Thread sizes available: 1/4-28 UNF, 3/8-24 UNF, 1/2-20 UNF, 5/8-18 UNF, 3/4-16 UNF, 1-12 UNF, 1-14 UNS, 1/4-20 UNC, 3/8-16 UNC, 1/2-13 UNC, 5/8-11 UNC, 3/4-10 UNC, 1-8 UNC, 1 1/4-7 UNC
- Safe load range by part number: 500 lb up to 15,000 lb
- Finish: Steel, zinc plated (as indicated in part descriptions)
- Packaging: Jam nut included with each eye bolt
- Warning: Do not exceed the safe load
