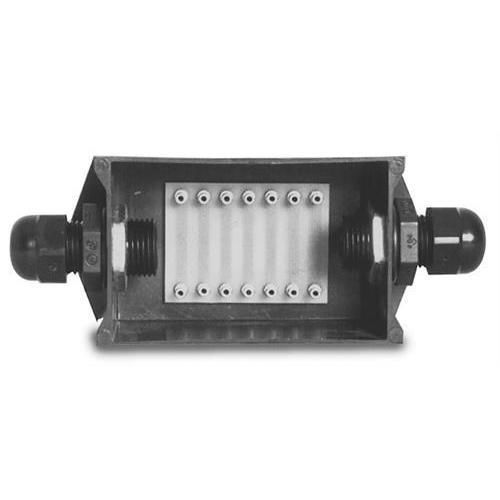

Cable joint with sealed box EL214

water-resistantplasticfor load cells

EL214

• Designed for a complete, professional transducer/load-cell cable splice
• Prevents moisture ingress to the load cell via the cable connector
• Kit contents: high-impact plastic splicing box, liquid-tight cable fittings, circuit card, PTFE sleeving, pre-measured potting compound and detailed instructions
• Solder-type terminals for reliable electrical connections

EL214T

• Accommodates larger-diameter cables than the EL214; all other dimensions and performance features are identical
• Solder-type terminals

EL214 Specifications
Dimensions (L × W × H): 3.00 × 1.00 × 1.50 in
Mounting Centers: 2.50 in
Number of Connections: Seven
Cable Diameter: 0.187 to 0.312 in
Cure Time For Potting: Two hours at 73 °F (23 °C)

EL214T Specifications
Dimensions (W × H × D): 3.00 × 1.00 × 1.50 in
Mounting Centers: 2.50 in
Number of Connections: 7
Cable Diameter: 0.187 to 0.312 in (supports larger cables; parts available for up to 0.480 in)
Cure Time For Potting: Epoxy-polyamide resin cures in 2 hours at 73 °F (23 °C)

Parts

• 15485 - Cable Splice Kit, 0.187 to 0.312 in cable
• 15486 - Cable Splice Kit, 0.270 to 0.480 in cable

Technical specifications

• Product types: EL214 and EL214T cable splicing kits for transducer/load-cell cables
• Splicing box material: high-impact plastic
• Included accessories: liquid-tight cable fittings, circuit card, PTFE sleeving, pre-measured potting compound, detailed instructions
• Terminals: solder-type terminals
• Mounting centers: 2.50 in
• Overall dimensions: 3.00 × 1.00 × 1.50 in (EL214 and EL214T)
• Number of connections: Seven
• Cable diameter accommodated (EL214): 0.187 to 0.312 in
• Cable diameter accommodated (EL214T): supports larger cables; parts available for 0.270 to 0.480 in
• Cure time for potting: ≈2 hours at 73 °F (23 °C); EL214T epoxy-polyamide cures in 2 hours at 73 °F (23 °C)
• Available parts: 15485 (0.187–0.312 in), 15486 (0.270–0.480 in)
