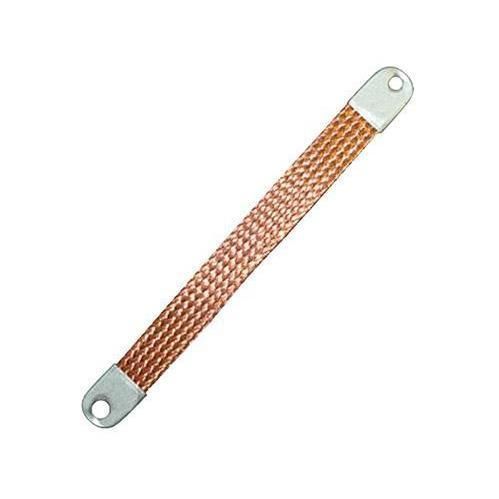

Ground wire 17778

Product overview

• Used in the ITCM assembly
• Tinned copper braid
• Crimped sleeve on ends with 0.25 in hole
• Available in 12 in (305 mm), 14 in (356 mm), 16 in (406 mm), 24 in (610 mm) or 32 in (813 mm) lengths

Information
The grounding straps provide an electrical grounding connection between two terminals. The tinned copper braid forms a flat, flexible strap suited for installation between moving or vibrating components. For retrofit applications, these straps are an effective method to add shielding continuity to cable assemblies without major rework.

Grounding Strap Dimensions
Part # | Length
17778 | 12 in (305 mm)
17779 | 14 in (356 mm)
17780 | 16 in (406 mm)
17781 | 24 in (610 mm)
17782 | 32 in (813 mm)

Technical specifications

• Material: tinned copper braid
• End terminations: crimped sleeve on ends with 0.25 in hole
• Typical use: electrical grounding connection between two terminals; suitable for movable or vibrating components; retrofit shielding for cables
• Available lengths/part numbers: 17778 (12 in / 305 mm), 17779 (14 in / 356 mm), 17780 (16 in / 406 mm), 17781 (24 in / 610 mm), 17782 (32 in / 813 mm)
• List prices (example from parts listing): most lengths listed at $22.00; 32 in (part 17782) listed at $30.00
