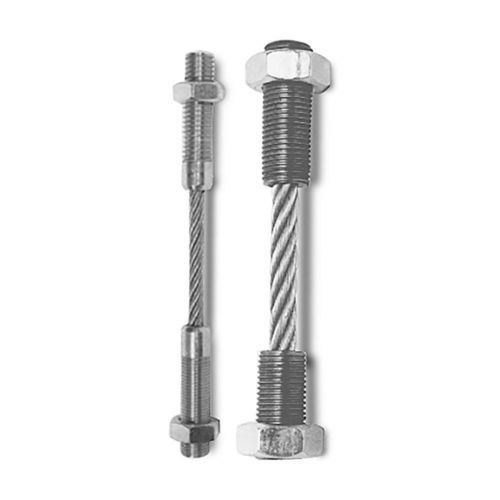

Galvanised steel wire rope 17760

stainless steelassembled

Product
Wire rope assemblies for load cell applications. Assemblies improve alignment, increase load cell repeatability and act as vibration dampeners.

Wire Rope Assemblies

• Designed for use with load cells to enhance alignment and measurement repeatability; provide inherent vibration damping.

Cardinal Wire Rope Assemblies

• EL208 Cardinal wire rope assembly: used on 7,500 lb capacity FH model and 8,000 lb capacity EP model.
• EL209 Cardinal wire rope assembly: used on 20,000 lb capacity FH and EP models; may also be used on 15,000 lb capacity FH and EP models.

Custom Wire Ropes

• When ordering custom ropes, complete the Custom Wire Rope Definition form and provide a sample when possible; specify required tension rating and total capacity.

Warning
Do not expose wire ropes to shock loads, chemicals or twisting. Use chains or rods as safety backup in case of catastrophic failure.

Wire Rope Assemblies Dimensions (table)
Part # | A | B & C | D | E | F | G | H | Safe Load*
17760 | 0.87 in | 0.50 in | 0.87 in | 1/4-20 UNC-2A | 1/4-28 UNF-2A | 0.12 in | 4.00 in | 400 lb
17762 | 1.25 in | 0.50 in | 1.25 in | 3/8-16 UNC-2A | 3/8-24 UNF-2A | 0.18 in | 5.00 in | 850 lb
17766 | 1.62 in | 0.50 in | 1.62 in | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 in | 6.50 in | 1,400 lb
17765 | 1.62 in | 0.50 in | 1.62 in | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 in | 5.50 in | 1,400 lb
17764 | 1.00 in | - | 1.37 in | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 in | 4.00 in | 1,400 lb
17768 | 2.00 in | - | 2.50 in | 3/8-24 UNF-2A | 3/8-24 UNF-2A | 0.12 in | 5.50 in | 400 lb
17769** | 1.25 in | - | 0.75 in | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 in | 3.00 in | 400 lb
17771** | 1.25 in | - | 0.75 in | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 in | 3.00 in | 1,400 lb
115292*** | 1.25 in | - | 0.75 in | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 in | 3.00 in | 300 lb
33084**** | 1.31 in | - | 1.00 in | 1/2-20 UNF | 1/2-20 UNF | 0.125 in | 3.62 in | 850 lb
*Do not exceed the safe load **Used with Rice Lake Weighing Systems flexure bases ***Stainless Steel ****Used with Rice Lake Weighing Systems FXB flexure bases

Cardinal Wire Rope Assemblies Dimensions (table)
Part # | A | B | C | D | E | F | G | H | I | J | K | L & M | N | Safe Load*
(inches)
17763 | 1.50 | — | 0.50 | 1.50 | — | 1/2-13 UNC | 0.25 | 6.00 | 0.81 | 0.43 | — | — | 0.43 | 1,400 lb
17767 | 1.71 | 0.75 | 0.09 | 2.00 | 0.43 | 6.31 | 3/4-10 UNC-2A | 1.25 | — | 0.60 | 0.50 | 0.625 | 0.375 | 2,880 lb

Custom Wire Ropes Dimensions
When ordering custom ropes please complete the Custom Wire Rope Definition form and provide a sample if possible.

Resources / Downloads

• Wire Ropes Catalog Page (PDF)
• Load Cell Mounting Hardware Safety Guidelines (PDF)

Specifications / Technical data

• Product type: Wire rope assemblies and custom wire ropes for load cell applications
• Materials: steel (galvanized) standard; selected parts available in stainless steel
• Included hardware: jam nuts included on listed assemblies
• Thread specifications: various (examples include 1/4-20 UNC-2A, 1/4-28 UNF-2A, 3/8-16 UNC-2A, 3/8-24 UNF-2A, 1/2-13 UNC-2A, 1/2-20 UNF-2A, 3/4-10 UNC-2A)
• Capacities / Safe loads: range from 300 lb up to 2,880 lb depending on part number (see tables for per-part safe load)
• Representative part numbers: 17760, 17762, 17764, 17765, 17766, 17767, 17768, 17769, 17771, 115292, 33084, 17763
• Typical dimensions available: A, B, C, D, E, F, G, H (see tables for per-part dimensional values)
• Application notes: assemblies improve alignment and load cell repeatability and act as vibration dampeners; do not expose to shock loads, chemicals or twisting
• Custom rope ordering: complete Custom Wire Rope Definition form and provide sample when possible; specify tension rating and total capacity
• Usage notes: chains or rods recommended as safety backup in case of catastrophic failure
