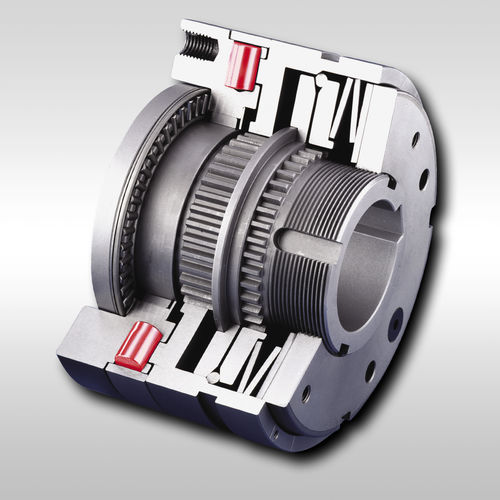

Torque limiter with sprocket wheel SIKUMAT® SR seriesfriction-freeroller
Add to favorites
Compare this product
Characteristics
- Operation
- with sprocket wheel, friction-free, roller
- Torque
Max.: 1,800 Nm
(1,327.611869 ft.lb)Min.: 5 Nm
(3.687811 ft.lb)- Diameter
Max.: 70 mm
(2.76 in)Min.: 7 mm
(0.28 in)- Rotational speed
Max.: 6,000 rpm
(37,699.1118 rad.min-1)Min.: 2,300 rpm
(14,451.3262 rad.min-1)
Description
Disengaging
with single rollers
Advantages
Disengages in case of overload – separation of input and output
Integral fixed bearing
Keyway in connecting flange for maximum torque capacity
Calibrated micro adjustment of torque setting possible, even post-installation
Cost effective
Function
When the preset limit torque has been reached the SIKUMAT® disengages the input and output.
After the overload has been eliminated the SIKUMAT® can be switched on again manually.
This means that an axial switching force must be applied to the switching ring.
