Torque limiter with sprocket wheel SIKUMAT® SN series
friction-freeroller

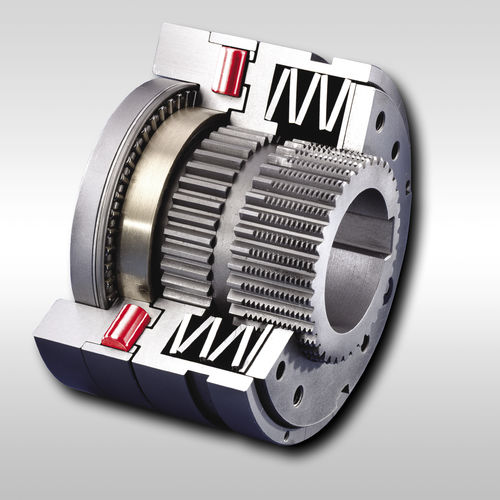

Torque limiter with sprocket wheel - SIKUMAT® SN series - RINGSPANN - friction-free / roller
Torque limiter with sprocket wheel - SIKUMAT® SN series - RINGSPANN - friction-free / roller
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Operation
with sprocket wheel, friction-free, roller
Torque

Max.: 1,800 Nm
(1,327.611869 ft.lb)

Min.: 5 Nm
(3.687811 ft.lb)

Diameter

Max.: 70 mm
(2.76 in)

Min.: 7 mm
(0.28 in)

Rotational speed

Max.: 1,000 rpm
(6,283.1853 rad.min-1)

Min.: 150 rpm
(942.4778 rad.min-1)

Description

Synchronous Ratcheting with single rollers Advantages Synchronous re-engagement after 360° Integral fixed bearing Driving keyway in the connecting flange for maximum load capacity Calibrated micro adjustment of torque setting possible, even post-installation Cost effective Function When the preset limit torque has been reached the SIKUMAT® ratchets. Following elimination of overload automatic synchronous re-engagement of the SIKUMAT® to the starting position after 360°. The overload can be indicated by a proximity switch. This means that the drive can be switched off immediately or another control function can be activated.
