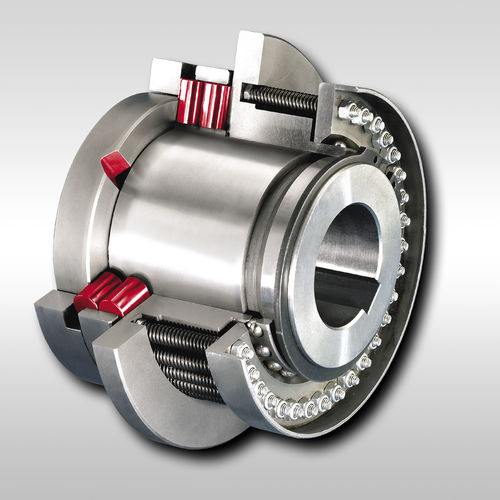

Friction-free torque limiter SIKUMAT® SB seriesroller
Add to favorites
Compare this product
Characteristics
- Operation
- friction-free, roller
- Torque
Max.: 10,000 Nm
(7,375.621493 ft.lb)Min.: 8 Nm
(5.900497 ft.lb)- Diameter
Max.: 125 mm
(4.92 in)Min.: 9 mm
(0.35 in)- Rotational speed
Max.: 6,000 rpm
(37,699.1118 rad.min-1)Min.: 1,300 rpm
(8,168.1409 rad.min-1)
Description
Synchronous Disengaging
with double rollers
Advantages
High degree of consistency of limit torque over the duration of operation through double roller principle
Switching off in case of overload – separation of input and output
Synchronous re-engagement after 360°
Function
When the preset limit torque has been reached the SIKUMAT® effects a separation of input and output by means of a locking mechanism with integral bearings.
Following elimination of the overload manual synchronous re-engagement of the SIKUMAT® to the starting position after 360°.
This requires an axial switching force to be applied to the switching ring.
Catalogs
SIKUMAT® SB
6 Pages
