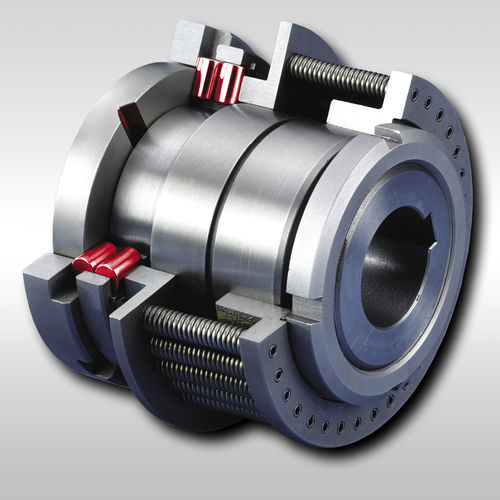

Friction-free torque limiter SIKUMAT® SA seriesroller
Add to favorites
Compare this product
Characteristics
- Operation
- friction-free, roller
- Torque
Min.: 7 Nm
(5.162935 ft.lb)Max.: 10,000 Nm
(7,375.621493 ft.lb)- Diameter
Min.: 9 mm
(0.35 in)Max.: 125 mm
(4.92 in)- Rotational speed
Min.: 250 rpm
(1,570.7963 rad.min-1)Max.: 1,500 rpm
(9,424.778 rad.min-1)
Description
Synchronous Ratcheting
with double rollers
Advantages
High degree of consistency of limit torque over the duration of operation through double roller principle
Synchronous re-engagement after 360°
For shaft diameters up to 125 mm
Function
When the preset limit torque has been reached the SIKUMAT® ratchets.
Following elimination of overload automatic synchronous re-engagement of the SIKUMAT® to the starting position after 360°.
The overload can be indicated by a proximity switch. This means that the drive can be switched off immediately or another control function can be activated.
