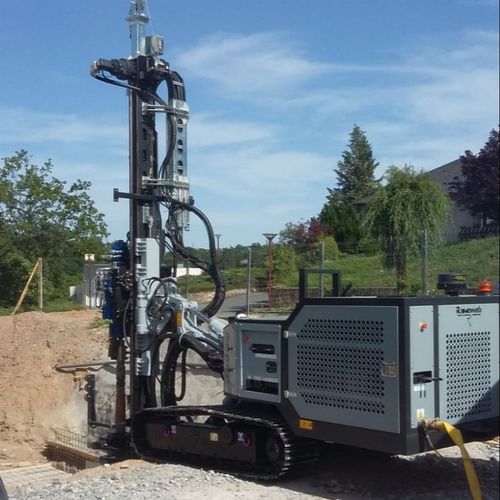

Tunnel consolidation drilling rig EAGLE 800

stabilizationgeotechnicalmicropile

Description
The EAGLE 800 drilling rig is a compact, versatile machine engineered for foundation and ground consolidation works. Its hydraulic system uses proportional distributors with both electric (radio remote) and manual actuation to ensure operability even if the radio system is compromised.

Capacity and applications
The machine performs drills from 80 to 220 mm diameter for micropiles, anchors and various consolidation applications. It is compatible with multiple drilling systems and tools, including:

• down-the-hole pneumatic hammers (rotary-percussion)
• water hammers (Wassara)
• cased drilling systems (Supermaxbit, Ultramaxbit, Superjaws)
• rotary drilling systems (tricone, three-blade, etc.)
• hydraulic down-the-hole hammers for self-drilling bars (up to 185 mm drilling diameter)
• hydraulic rock hammers for tunnel drilling (radial anchors, rock bolting)

Operational features
The tiltable crawler optimizes machine balance during travel and loading/unloading operations. The radio remote enables the operator to work under safer conditions during drilling as well as during loading/unloading and positioning on site.

Technical features / specifications

• Drilling diameter: 80 - 220 mm
• Maximum diameter for self-drilling bars (with hydraulic down-the-hole hammers): up to 185 mm
• Hydraulic system with proportional distributors
• Controls: electric actuation via radio remote and manual control
• Compatibility: pneumatic hammers, water hammers, cased systems, tricone and other rotary systems, hydraulic rock hammers
• Tiltable crawler to optimize balance during travel and loading/unloading
• Designed for micropiles, anchors and consolidation works
