Pneumatic drilling unit EX 224
hydraulictapping

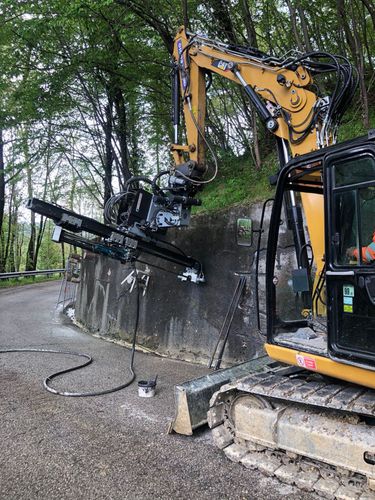

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping - image - 2

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping - image - 3

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping - image - 4

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping - image - 5

Pneumatic drilling unit - EX 224 - Ripamonti Dr Gianni S.r.l - hydraulic / tapping - image - 6

Add to favorites

Compare this product

Characteristics

Drive type: pneumatic, hydraulic
Other characteristics: tapping
Stroke: 2,400 mm, 3,100 mm
(94.49 in, 122.05 in)

Description

Description
The EX 224 drilling slide unit is a modular linear slide designed for integration into special-purpose machines. Use of SPEEDY DRILL (aluminium) and STEEL 300 (steel) slides on a dedicated frame with kinematics developed through 3D modelling enables solutions ranging from simple, lightweight slides with pneumatic controls to complex applications with radio-controlled proportional hydraulic systems.

Applications

Integration into special drilling, tapping and riveting machines
Production lines requiring modular slide elements
Custom machinery developed to customer specifications

Technical features / specifications

Available slides: SPEEDY DRILL (aluminium) and STEEL 300 (steel)
Control types: pneumatic controls; radio-controlled proportional hydraulic controls
Frame and kinematics designed with 3D modelling
Manufacture of special machines to customer specifications

Integration & options

Material and finish options to suit application
Adaptable mounting and kinematic arrangements for bespoke frames
Control system options including pneumatic and proportional hydraulic radio control
