Fabric curtain TZ

PVCinsulatedthermal radiation protection

Product overview

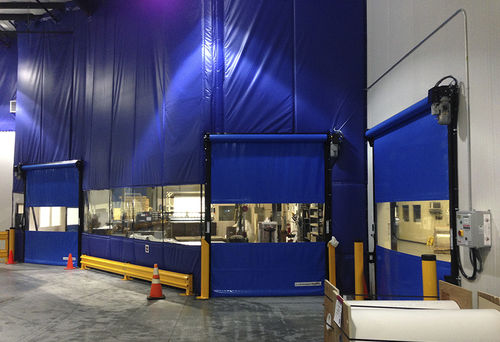

Zoneworks® Insulated Curtain Walls provide a modular, reconfigurable solution to separate temperature-controlled areas, contain heat and manage humidity. Designed for industrial environments, they allow fast installation and flexible zoning without permanent construction.

Key features

• Modular, reconfigurable curtain wall system
• Quick installation and clean reconfiguration
• Available in multiple temperature-separation ratings (TZ15, TZ35, TZ55)

Benefits — Temperature Separation
Provides up to 55°F (31°C) or more of temperature separation with the TZ55 model, enabling distinct temperature zones within a single facility.

• Create separate temperature areas inside freezers, coolers, warehouses, open docks or production floors
• Protect temperature-sensitive products from heat or ambient conditions
• Maintain consistent zone temperatures for improved energy efficiency and reduced product shrink
• Provide targeted thermal comfort for personnel in specified plant areas

Benefits — Heat Containment
Insulated curtain walls reduce heat migration between areas to protect processes and improve workplace conditions.

• Constructed with polyester batting or heat‑reflective fabric to limit heat penetration
• Isolate heat-generating production processes to improve employee comfort
• Prevent excessive heat from impacting adjacent processes
• Maintain minimum temperatures required for specific production processes

Benefits — Humidity Control
Rite-Hite TZ Insulated Curtain Walls offer a cost-effective method to control humidity, enabling repeatable environments for processes such as fruit ripening or adhesive curing.

Insulated Curtain Wall Construction
Zoneworks TZ walls consist of industrial vinyl wrapped around antimicrobial polyester batting and are available in multiple configurations to meet different temperature-separation needs.

• TZ15: up to 15°F (8°C) temperature separation
• TZ35: up to 35°F (20°C) temperature separation
• TZ55: 55°F (31°C) or more temperature separation

Applications

• Zoning inside warehouses and production areas
• Temperature separation for coolers, freezers and docks
• Dust control, sound dampening and washdown environments
• Humidity control, fume and odor containment, and heat containment

Technical specifications

• Series: TZ series (models TZ15, TZ35, TZ55)
• Temperature separation: TZ15 ≈ 15°F (8°C); TZ35 ≈ 35°F (20°C); TZ55 ≈ 55°F (31°C) or more
• Construction: industrial vinyl exterior wrapped around antimicrobial polyester batting
• Insulation: polyester batting (meets ASTM E84 Class A)
• Fabric flammability: vinyl meets ASTM E84 (Class A), NFPA-701 and CSFM standards
• Modular design enables fast installation and reconfiguration
• Typical uses: freezer/cooler zoning, dock partitioning, production area zoning, humidity and heat containment
