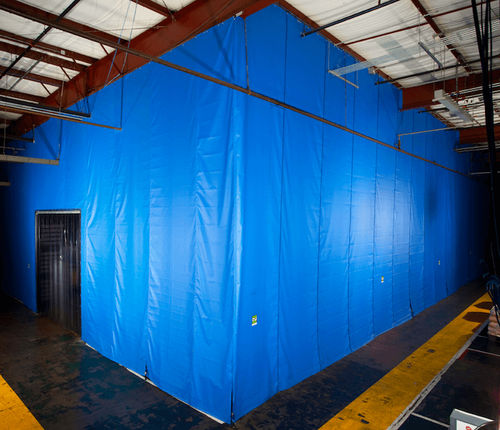

Machine acoustic enclosure Zoneworks SZ

Overview
Zoneworks® SZ industrial sound curtains consist of two layers of woven, coated fabric enclosing one or more internal insulating layers, typically including a sound-dampening loaded vinyl and an antimicrobial polyester batting. Panels are modular and configurable for single-machine isolation or larger area partitioning.

Key features

• Custom design to fit specific industrial applications
• Enclose noisy operations and equipment
• Partition areas for targeted sound control
• Modular panels with full-panel sliding or stationary mounting
• Available in SZ and SZ2 variants with defined STC ratings

Benefits
Layered sound-absorbing materials reduce transmitted noise by approximately 22–25 dB depending on frequency content and installation. Curtains help protect employee comfort and hearing, isolate noisy processes, and improve working conditions.

• Reduce excessive noise levels
• Isolate or enclose noisy machines and operations
• Create controlled sound zones within production areas
• Contribute to employee comfort and productivity

Design / Configuration
SZ panels are supplied as modular units that can be arranged for single-machine enclosures, line-of-process separation, or full-room division. Mounting options include full-panel sliding systems or stationary installations to fit site requirements.

Types

• SZ: Targets both higher and lower frequency sounds. Sound Transmission Class (STC): 23. Effective for noise from grinders, shredders, large industrial machines and equipment.
• SZ2: Targets mid-range frequency sounds. Sound Transmission Class (STC): 16. Dampens ambient noise from lift traffic, light machinery, voices and office equipment.

Applications

• Machine enclosures and isolation of noisy equipment
• Separating interior production or maintenance spaces
• Sound dampening in manufacturing, fabrication and heavy industrial environments

Technical specifications

• Construction: Two layers of woven, coated fabric with one or more internal insulating layers
• Core materials: Sound-dampening loaded vinyl + antimicrobial polyester batting (typical)
• Typical noise reduction: ~22–25 dB (depends on frequency and installation)
• Available STC ratings: SZ = STC 23, SZ2 = STC 16
• Mounting: Full-panel sliding or stationary mounting; modular panel configuration
• Purpose: Partition sound zones, enclose noisy operations, protect employee hearing and comfort
• Design: Custom-configurable to application requirements
