Fabric curtain BZH

metalslidinginsulated

Overview
Rite-Hite Zoneworks BZH blast freezer curtains are insulated sliding curtain walls designed to seal blast freezer openings, rapidly bring foods to optimal temperatures, reduce energy loss and improve operational safety. They provide a durable, lower-maintenance alternative to heavy insulated panel doors and are engineered for single-person operation.

Key benefits

• Effectively seal and redirect airflow to maintain freezer conditions and reduce energy consumption
• Stronger, longer-lasting seal than a typical freezer door; maintains superior seal after repeated use
• Constructed to reduce frost on doors and floors (anti-microbial batting and industrial vinyl face); minimizes need for motorized opening systems
• Lightweight design enables single-person operation and lower long-term maintenance compared to motorized doors

Design and construction
Freezer curtains are constructed from insulated, sliding panels nested in a tubular steel frame. Each panel is made of 18-ounce industrial-strength vinyl fabric surrounding a layer of anti-microbial polyester batting. Panels slide on a track-and-trolley system and the system can be configured in multiple layouts depending on application. Galvanized vertical control staffs with drop pins and floor sockets provide stability in windy/loading conditions, and a flexible bottom sweep seals against the floor to minimize energy loss and help maintain desired conditions.

Applications and operation
The BZH curtain wall is intended for blast freezer and industrial freezer environments, suitable for openings that can be very large (examples cited up to approximately 25' x 25'). The design avoids heavy motorized components that tend to freeze and require frequent maintenance; its light panels allow manual operation by a single person. Available design options include between-jambs installation, single-slide, or bi-parting configurations.

Gallery / Media

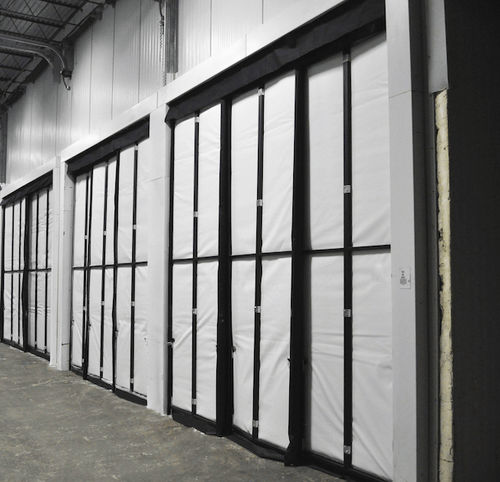

Multiple product images and operation videos illustrate panel construction, track-and-trolley operation, and typical installed configurations.

Technical specifications

• Commercial name / series: BZH (Blast Freezer Curtains)
• Panel face material: 18-ounce industrial-strength vinyl fabric
• Insulation core: anti-microbial polyester batting
• Frame: tubular steel
• Operation: sliding panels on track-and-trolley system; designed for single-person manual operation
• Stability features: galvanized vertical control staffs with drop pins and floor sockets
• Floor sealing: flexible bottom sweep to minimize energy loss
• Design options: between-jambs, single slide, bi-parting
• Typical application: blast freezer / industrial freezer environments; openings referenced up to ~25' x 25' (≈7.6 x 7.6 m)
• Maintenance: minimal long-term maintenance; no motor required for typical operation
• Benefits: improved seal durability, reduced frost accumulation, lower energy consumption, improved safety versus heavy insulated panel doors
