Flashing indicator light Virtual Vision

LEDLED formatsignaling

Overview

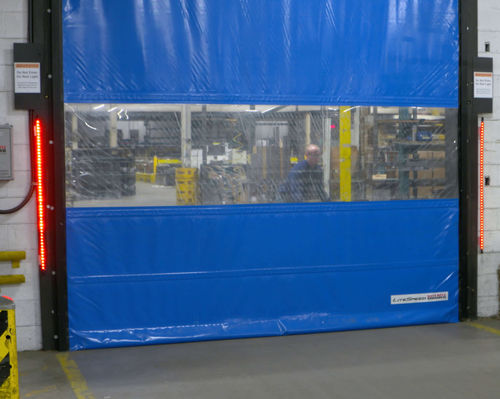

LED Virtual Vision is a motion-activated visual door-status indicator designed for industrial environments to improve safety at door openings. The system provides a clear LED display of door status and warns approaching traffic when motion is detected on the opposite side of a door.

Functionality
The system uses motion sensors and LED strips: when motion is detected on the far side of the door, the LED strips flash red to signal potential traffic. It is intended to enhance communication between operators and pedestrians and to reduce blind spots where direct sightlines are limited.

Includes

• (4) red LED strips
• (2) 50 ft (15,240 mm) low-voltage cables
• (2) Falcon motion sensors

Benefits

• Immediate visual indication of door-side activity
• LED-based door status display for faster recognition
• Motion detection warns of approaching forklifts or personnel on the opposite side
• Contributes to reduced collisions and minimized blind spots at door openings

Media
Product page includes an illustrative operation video and supporting visual assets demonstrating typical installation and use cases in industrial settings.

Technical specifications

• LED indicators: 4 red LED strips
• Cabling: two 50 ft (15,240 mm) low-voltage cables included
• Sensors: two Falcon motion sensors included
• Operation: LED strips flash red when motion is detected on the opposite side of the door
• Primary function: visual door-status communication and motion-based warning
• Application: designed to help reduce forklift/pedestrian collisions and reduce blind spots at door openings
