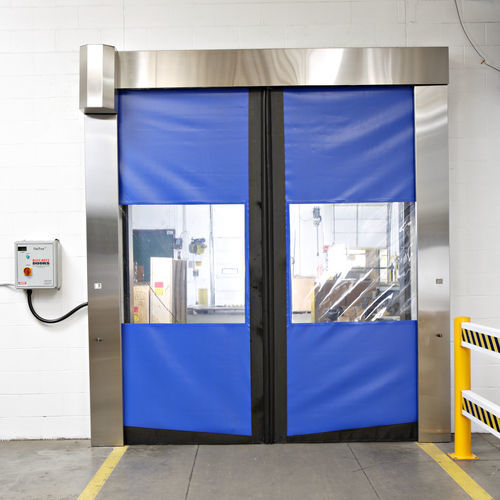

Multi-leaf door ISO-Clean® Split

stainless steelfabricfor clean rooms

Overview
This bi-parting, split-center clean room door is engineered for pharmaceutical and life sciences environments to deliver rapid access and superior environmental control. The design minimizes wall intrusion while providing a compact footprint, hygienic materials and a reliable tight seal.

Key Features

• Bi-parting / split-center configuration for immediate access through the door opening.
• Peak operating speeds up to 120" per second (3.05 m/sec) for rapid cycle times and improved contamination control.
• Removable side frames with three construction options to suit different installation requirements.
• Spring-tube curtain collection located in side frames to reduce overhead contaminants.
• Smooth curtain fabric and stainless steel components for easy wipe-down and corrosion resistance; FDA and cGMP compliant construction.
• Multiple safety systems including three sets of reversing thru-beam photo eyes as standard.
• Compatible with laser or infrared sensors for reliable activation in pharmaceutical operations.
• Compact footprint reduces required wall space while maintaining a tight seal.

Connected Capabilities

• Compatible with Door-Commander™ Advanced Controls for connectivity and diagnostics.
• Integration with Rite-Hite ONE digital platform (subscription required) provides real-time visibility, alerts and analytics.
• Connected insights include safety alerts (door reversals, excessive open time, false activations), productivity analytics (cycle counts, utilization) and uptime tracking (equipment state, service history).

Applications

• Primary application: pharmaceutical clean rooms and life sciences facilities.
• Also suitable for other controlled clean environments requiring high-speed, hygienic door solutions.

Technical specifications

• Model family: ISO-Clean® Split
• Door type: Bi-parting (split-center)
• Maximum peak speed: Up to 120"/sec (3.05 m/sec)
• Side frames: Removable; three construction options available
• Curtain collection: Spring-tube design within side frames to reduce overhead contaminants
• Materials & finish: Smooth curtain fabric; stainless steel components for wipe-down and corrosion resistance
• Compliance: FDA and cGMP compliant
• Safety systems: Three sets of reversing thru-beam photo eyes (standard); additional sensor options (laser or infrared)
• Connected controls: Compatible with Door-Commander™ Advanced Controls and Rite-Hite ONE (subscription required)
• Typical industries: Pharmaceutical, life sciences, and other clean-room environments
