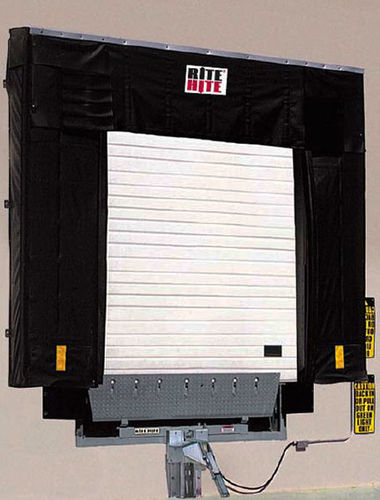

Sectional door InsulRite 7000

galvanised steelindustrialenergy-saving

Outstanding Insulation and Energy Saving
Two-layer zinc-aluminum galvanized steel with a thickness of 0.4 mm. Polyurethane is continuous foamed-in-place between the inner and outer steel skins to form a homogeneous steel/polyurethane/steel sandwich. High insulation increases energy efficiency and reduces operating costs.

Multiple Safety Features
Designed according to safety principles and passed rigorous safety tests. Equipped with the following safety elements:

• anti-clamping hand-panel joints
• anti-cable-broken system
• anti-spring-broken system
• optional safety bottom

Exceptional Sealing
Continuous polyurethane foam and seals between sections and at top, bottom and sides prevent air and water infiltration, keeping the environment clean and reducing energy loss.

Heavy-duty Hardware, Easy Maintenance
Heavy-duty hardware with galvanized balance springs processed under pre-stress. High strength, reliable and durable components. Unique 'C' roller bracket and nylon rollers enable low-maintenance operation.

Flexibility
Multiple lift configurations to suit different applications. Optional vision windows and motorized operation available.

12-month Warranty Guarantee
Rite-Hite warrants all components to be free of defects in material and workmanship, under normal use, for a one-year period in accordance with Rite-Hite’s Standard Warranty Policy.

Technical specifications

• Model name: InsulRite 7000
• Material: Two-layer zinc-aluminum galvanized steel (inner and outer skins)
• Steel thickness: 0.4 mm
• Insulation: Continuous foamed-in-place polyurethane between steel skins (steel/polyurethane/steel sandwich)
• Sealing: Seals between sections and at top, bottom and sides to prevent air and water infiltration
• Safety systems: Anti-clamping hand-panel joints; anti-cable-broken system; anti-spring-broken system; optional safety bottom
• Hardware: Heavy-duty hardware; galvanized balance springs with pre-stress; unique 'C' roller bracket; nylon rollers
• Options: Vision window; motorized operation; various lift configurations
• Warranty: 12-month standard warranty from Rite-Hite
• Primary benefit: Enhanced thermal insulation to increase energy efficiency and reduce operating costs
