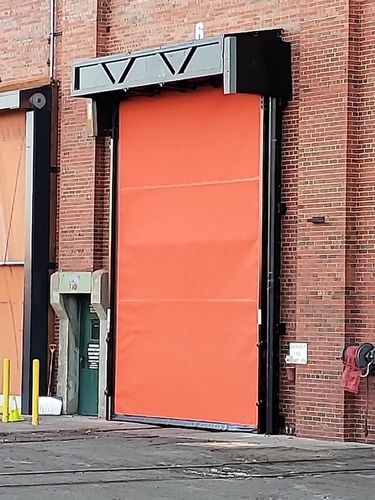

Large roller shutter FasTrax® XL

roll upmotorizedindustrial

Overview
The FasTrax® XL is a super-sized model of the FasTrax series engineered for harsh environments and large industrial openings. It delivers rapid cycle times, safety features and energy savings on a single operational platform with a unique drive system designed for demanding applications.

Key Features

• Sizes up to 24' x 24' (7316 mm x 7316 mm)
• TRUE Auto Re-feed™: after an accidental impact the door re-feeds itself on the fly without human intervention
• High operating speeds: up to 52" per second (1.3 m/sec)
• Soft-Breakaway Technology standard for inherent impact protection
• Standard thru-beam photo eyes and optional motion detection
• Optional precision sensors: laser and infrared for enhanced safety and efficiency

Benefits — Design
Simple, larger design built on a single operational platform and a unique drive system to handle oversized openings and withstand harsh environments.

Benefits — Safety

• TRUE Auto Re-feed reduces downtime by automatically restoring the curtain after impact
• Multiple integrated safety elements including Soft-Breakaway Technology and thru-beam photo eyes
• Optional motion detection and precision laser/infrared sensors to protect personnel and equipment

Benefits — Operating Speed
One of the industry’s highest operating speeds to minimize cycle times, increase throughput and reduce energy losses.

Benefits — Connected Capabilities
The FasTrax® XL integrates with advanced control and digital platforms to improve visibility and asset management. Connected features include:

• Real-time alerts for safety events (door reversals, excessive open time, false activations)
• Productivity analytics (cycle counts, equipment utilization, false activation tracking)
• Uptime and maintenance visibility (equipment state, service history, performance trends, maintenance logging)

Specifications

• Maximum opening size: up to 24' x 24' (7316 mm x 7316 mm)
• Maximum operating speed: up to 52" per second (1.3 m/sec)
• Auto Re-feed: TRUE Auto Re-feed™ (automatic re-feed after impact)
• Impact protection: Soft-Breakaway Technology (standard)
• Safety sensors: thru-beam photo eyes (standard); optional motion detection; optional laser and infrared sensors
• Application: designed for harsh environments and large industrial door openings
