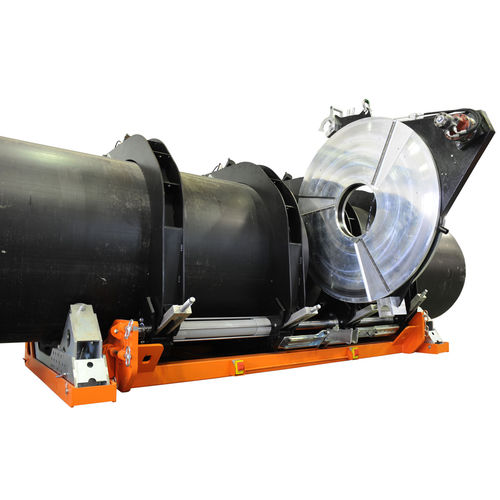

Butt welding machine DELTA 1600

automaticfor plastic pipe400V three-phase

DELTA 1600 HDR is a self-aligning welding machine with hydraulic clamps suitable for welding HDPE pipes for the transport of water and other fluids under pressure, up to Ø 1600 mm. The DELTA 1600 is designed in accordance to International standards (UNI 10565, ISO 12176-1). The DELTA 1600 can weld fittings such as elbows, tees, branches and flange necks. - Robust machine body made of steel - Steel hydraulic clamping - Automatic detaching device of heating plate - Raised platform deck for perfect monitoring of fusion process - Easy to operate control panel - INSPECTOR data logger compatible - On board hydraulic control gearcase - Pressure adjustment and pressure release valves for easy operations - Hydraulically controller facer with safety microswitch - Teflon coated heating plate with indipendent thermometer ON REQUEST (ACCESSORIES) - Hydraulic pipe lift rollers - 4 wheeled trolley with extendable levellers for stabilization - THE INSPECTOR data logging - Steel inserts - Electrical crane
