Enclosure system with post VX SE seriesswitchingdisassemblablerobust
Add to favorites
Compare this product
Characteristics
- Type
- switching
- Mounting
- with post
- Other characteristics
- disassemblable, robust, IP55, IP66, NEMA 12, NEMA 4, with mounting plate
- Width
Min.: 600 mm
(23.6 in)Max.: 1,800 mm
(70.9 in)- Height
Min.: 1,800 mm
(71 in)Max.: 2,000 mm
(79 in)- Depth
Min.: 300 mm
(12 in)Max.: 600 mm
(24 in)
Description

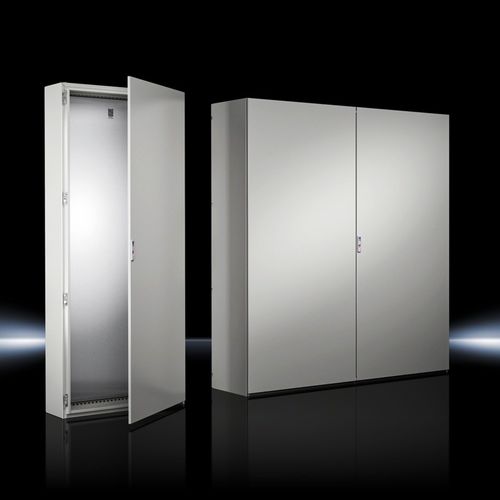

Free-standing sheet steel enclosure with stable enclosure body, two integral mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Efficiency is enhanced, as the side panels no longer need to be fitted. Also available with IP 66/NEMA 4.
