Wire stripping and crimping machine WT series

fully-automatic

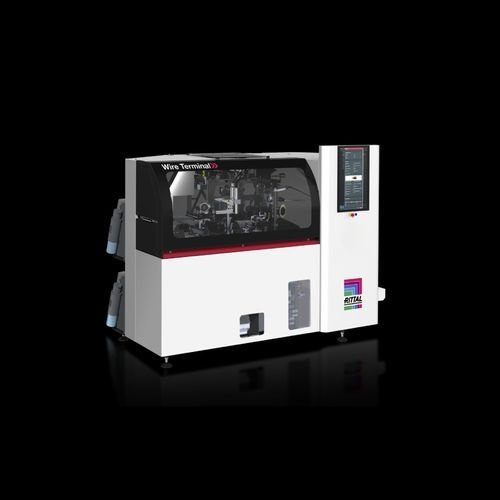

Overview Fully automated wire processing including length-cutting, stripping, crimping with wire end ferrules and project-specific labelling. Supports order-specific picking into a dedicated storage system, output in wire rail sequence, chain-bundle output or just-in-time delivery via Wire Handling System (WHS).

Features

• Available in six versions (L5 R, L5 B, L5 T, L10 R, L10 B, L10 T)
• Wire cross-sections: 0.5–2.5 mm² or 0.5–6 mm² depending on variant
• Three output options: wire rail system, chain bundle, Wire Handling System
• Linear-controlled stripping and crimping allowing full or partial stripping
• Advanced wire routing with infeed block equipped with RFID memory for secure, repeatable setup

Benefits

• Time savings reported up to 50% when combined with Rittal Wire Terminal and Eplan Smart Wiring
• Accelerates production through full automation of wire processing
• Processing operations reported up to 11× faster (stated)
• Typical amortisation from approx. 150 enclosures/year (~2.5 years stated)
• Consistent high quality of processed wires

Product variants

• Wire Terminal WT L5 R — wire rail system; processes 0.5–2.5 mm²; finished wires guided to rails in correct sequence; rails can be locked front and rear
• Wire Terminal WT L5 B — wire chain bundler; processes 0.5–2.5 mm²; finished wires output in chain bundles
• Wire Terminal WT L5 T — Wire Handling System feed; processes 0.5–2.5 mm²; integrates with WHS for sequential, just-in-time delivery to wiring stations
• Wire Terminal WT L10 R — wire rail system; processes 0.5–6 mm²; finished wires guided to rails in correct sequence; rails can be locked front and rear
• Wire Terminal WT L10 B — wire chain bundler; processes 0.5–6 mm²; finished wires output in chain bundles
• Wire Terminal WT L10 T — Wire Handling System feed; processes 0.5–6 mm²; integrates with WHS for sequential delivery to wiring stations

Automated wire processing functions

• Length-cutting
• Insulation-stripping (full to partial)
• Crimping including fitting with wire end ferrules
• Project-specific labelling
• Order-specific sorting and output (wire rails, chain bundles, or WHS)

Accessories & options (selected)

• Loose wire end ferrules with plastic collars in various cross-sections
• Wire rail lock WT for transport-secure locking of wire rails
• Wire cart for multiple wire rails with tool holder
• Wire rail WT variants for 0.5–6 mm²
• Cleaning station for print head maintenance
• Wire store WT Tube 12 with RFID-enabled infeed block for quick refit
• Vibratory bowl feeder for wire end ferrules
• Bundle tape WT for chain bundle output
• Printer option Wire Printer for automatic labelling (black, white, light blue) via HMI

Downloads Flyer: Wire Terminal WT; Brochure: Rittal Automation Systems

Technical specifications

• Versions: L5 R, L5 B, L5 T, L10 R, L10 B, L10 T
• Wire cross-section ranges: 0.5–2.5 mm² or 0.5–6 mm² depending on variant
• Output options: wire rail system, chain bundle, Wire Handling System (WHS)
• Functions: length-cutting, insulation-stripping (full/partial), crimping, labelling
• Wire routing: infeed block with RFID memory for controlled, secure wire infeed
• WHS: just-in-time distribution to up to four wiring workstations using compressed air
• Linear-controlled stripping and crimping for precise processing
• Performance notes: up to 50% time savings with Eplan Smart Wiring; processing up to 11× faster; amortisation from ~150 enclosures/year (stated)
