Class J fuse holder RiLineX

for busbar mountingClass JUL

Product description

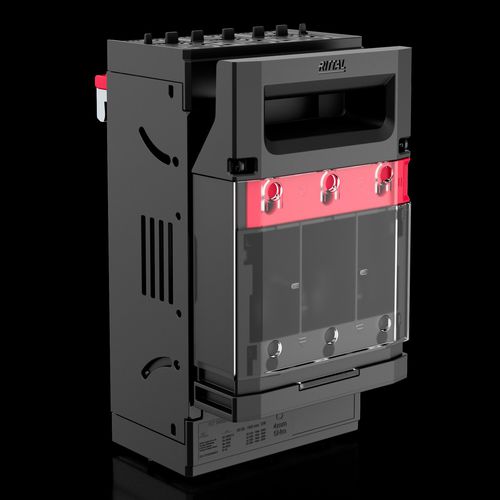

RiLineX fuse holder RX 9364010 for 60 mm busbar systems. For Class J fuse inserts (21×57 mm), rated 1–30 A. Lockable cover prepared for lead seal. Integrated measuring points on the cover allow safe voltage testing. Fuse holder features a parking position for maintenance. Connection variant with box terminal for round conductors from 1.5 to 95 mm²; fine-wire with ferrule connection 1.5–70 mm².

Benefits

• Cover: lockable and prepared for lead seal
• Voltage test via integrated measuring points and separate opening
• Parking position for easier maintenance

Material and colour

• Polyamide (PA 6), fire behaviour UL 94‑V0
• General colours: RAL 9005; RAL 35745

Electrical and mechanical data

• Rated current (max.): 30 A
• Rated operating voltage: 600 V AC
• Electrical ratings UL (SCCR): 200 kA - 600 V, Fuse Class J max. 30 A, JDDZ/7
• Cable outlet: top/bottom
• Number of poles: 3‑pole

Fuse and busbar compatibility

• Compatible with Class J fuse cartridges (21×57 mm)
• Busbar compatibility: 15 x 5/10 mm; 20 x 5/10 mm; 30 x 5/10 mm

Connection

• Connection of round conductors (box terminal variant): 1.5–95 mm²
• Connection of fine wire with ferrule: 1.5–70 mm²
• Note: documentation references both 1.5–95 mm² and 1.5–70 mm² for different connection variants

Dimensions

• Width: 106 mm
• Height: 195 mm
• Depth: 105 mm

Packaging and weight

• Article no.: RX 9364010
• Packs of: 1 pc
• Net weight: 1.2 kg
• Gross weight: 1.235 kg

Technical specifications

• Customs tariff number: 85361050
