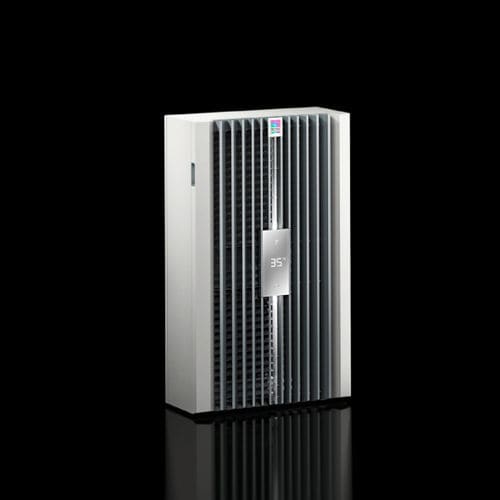

Wall-mounted electrical cabinet air conditioner Blue e+ S

vertical

Product overview
Wall-mounted Blue e+ S cooling unit delivering 0.5 kW cooling capacity (model SK 3479801). Designed for enclosure and system cooling with integrated e+ controller and compatible with IoT monitoring.

Article number
SK 3479801

Key benefits

• Average energy savings of 75% vs. conventional units, reducing machine and system CO₂ footprint
• Multi-voltage design and country-specific approvals for global deployment
• Remote monitoring and diagnostics via IoT interface for improved uptime
• Operation and service support through the Rittal Scan & Service app

Design and materials

• Mounting: wall-mounted / side-mount installation
• Material: sheet steel enclosure
• Colour: enclosure RAL 7035; louvred grille RAL 7012

Supply includes

• Fixing/assembly parts
• Fully wired, ready for connection (plug-in terminal strip)

Options
For remote monitoring and networking of Blue e+ generation cooling units and chillers, use the IoT interface (Model No. 3124.300). Enables remote reading of device data, statuses and system messages to increase machine availability.

Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 0.5 kW
Cooling output L35 L35/60 Hz: 0.5 kW
Cooling output L35 L50/50 Hz: 0.23 kW
Cooling output L35 L50/60 Hz: 0.23 kW

Electrical and performance

• Rated operating voltage: 110 V - 240 V, 1~, 50/60 Hz (tolerance: -10% / +10%)
• Rated power input: 0.36 kW
• Power consumption Pel examples: 0.25 kW / 0.29 kW depending on condition
• Air throughput (free flow): external circuit 366.6 m³/h; internal circuit 366.6 m³/h
• Energy efficiency ratio (EER) L35 L35: 2 (50/60 Hz)

Refrigerant
Refrigerant: R-1234yf; Total quantity: 0.17 kg (compression system 0.1 kg; heat-pipe system 0.07 kg); GWP: 0.5; CO2e: 0 t

Operating and storage ranges
Operating temperature range: -20 °C ... 60 °C
Storage temperature range: -40 °C ... 70 °C
Active refrigerant circuit operating range: 3 °C ... 60 °C
Heat-pipe operating range: -20 °C ... 45 °C
Setting range: 20 °C ... 50 °C

Notes
Observe mounting instructions. Software download constitutes a licence agreement with Rittal for free use under the stated conditions. Suitable for semi-outdoor applications only (see manual).

Technical specifications

• Article no.: SK 3479801
• Designation: SK Blue e+ S cooling unit, wall-mounted, 0.5 kW, 110-240 V, 1~, 50-60 Hz
• Dimensions (W x H x D): 300 x 570 x 199 mm
• Required mounting cut-out (W x H): 280 x 550 mm
• Protection rating (IEC 60 529): internal circuit IP 55
• NEMA/UL: UL Type 1; UL Type 12
• Temperature control: e+ controller (factory setting +35 °C)
• Permissible operating pressure (p max.): 32 bar
• Packing unit: 1 pc
• Net weight: 12.84 kg; Gross weight: 14.2 kg
• PCF (cradle-to-gate): 81.32 kg CO2 eq (Cat B)
• Customs tariff number: 84158200; ETIM 8: EC000855; ECLASS 8.0: 27180704
