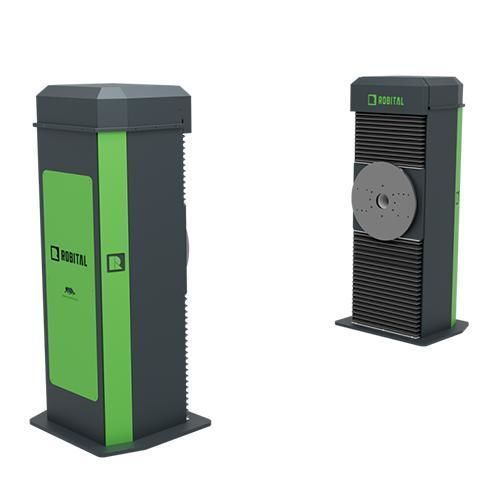

Rotary positioner THZ

vertical2-axisfor robots

Overview
THZ is a 2-axis robotic positioner (1 horizontal + 1 vertical axis) designed for synchronized robot and workpiece movement in complex welding operations. Available in multiple sizes to handle workpieces from 1,000 kg up to 40,000 kg.

Key properties

• Infinite rotational capability on the rotary axis
• High-precision positioning for multi-axis welding

Application
Designed for welding cells where synchronous movement between robot and positioner is required, enabling coordinated motion paths for complex geometries and multi-pass welding processes.

Technical specifications table
Size | Capacity (kg) | Drive Tech Pieces (*1) | Turning Diameter | Shaft Information (*2) | Rotational Axis Max. Velocity (RPM) | Z Axis Max. Velocity (mm/s) | Drive Group Code | Allowable Inertia (kgm²) | Torque Rotary (Nm)
Small | 1000 | SD, DD | Q750, Q1000, Q1500, Q2000, Q2500 | Ssh, Hsh | 15 | 20 | OPTIONS | 1750 | 1750
Small | 2500 | SD, DD | Q750, Q1000, Q1500, Q2000, Q2500 | Ssh, Hsh | 10 | 15 | OPTIONS | 2750 | 4100
Medium | 5000 | SD, DD | Q750, Q1000, Q1500, Q2000, Q2500 | Hsh | 7.5 | 10 | OPTIONS | 8000 | 9000
Medium | 7500 | SD, DD | Q750, Q1000, Q1500, Q2000, Q2500 | Hsh | 7.5 | 8 | OPTIONS | 12500 | 13000
Large | 10000 | SD, DD | Q1000, Q1500, Q2000, Q2500, Q3000, Q3500 | Hsh | 6 | 5 | OPTIONS | 22500 | 19000
Large | 15000 | SD, DD | Q1000, Q1500, Q2000, Q2500, Q3000, Q3500 | Hsh | 6 | 3 | OPTIONS | 40000 | 29000
Xlarge | 20000 | SD, DD | Q2000, Q2500, Q3000, Q3500, Q4000, Q4500 | Hsh | 4 | 3 | OPTIONS | 55000 | 38000
Xlarge | 30000 | DD | Q2000, Q2500, Q3000, Q3500, Q4000, Q4500 | Hsh | 4 | 2.5 | OPTIONS | 77500 | 57000
2Xlarge | 40000 | DD | Q2000, Q2500, Q3000, Q3500, Q4000, Q4500 | Hsh | 3.5 | 2 | OPTIONS | 110000 | 77000

Notes
*1 SD: Single Drive | DD: Double Drive
*2 Ssh: Solid Shaft | Hsh/HSH: Hollow Shaft

Robot Brand Codes
AB: ABB | CO: COMAU | FA: FANUC | HY: HYUNDAI | KA: KAWASAKI | KU: KUKA | NA: NACHI | OT: OTC | PA: PANASONIC | ST: STAUBLI | YA: YASKAWA | XX: OTHER SERVO MOTOR

Features / Technical specifications

• Axes: 1 horizontal + 1 vertical (THZ configuration)
• Infinite rotational capability on the rotary axis for continuous indexing
• High-precision positioning tailored for welding applications
• Available sizes from Small to 2Xlarge, capacities 1,000–40,000 kg
• Drive options: SD (Single Drive) or DD (Double Drive) depending on capacity
• Turning diameters: Q750–Q4500 depending on size
• Shaft options: Solid shaft (Ssh) or Hollow shaft (Hsh)
• Rotational axis speed range: 3.5–15 RPM depending on size
• Z-axis speed range: 2–20 mm/s depending on size
• Compatibility with major industrial robot brands (ABB, FANUC, KUKA, Yaskawa, Kawasaki, Hyundai, etc.)
• Customization and options available: accessories, drive configurations, control interfaces and bespoke adaptations
