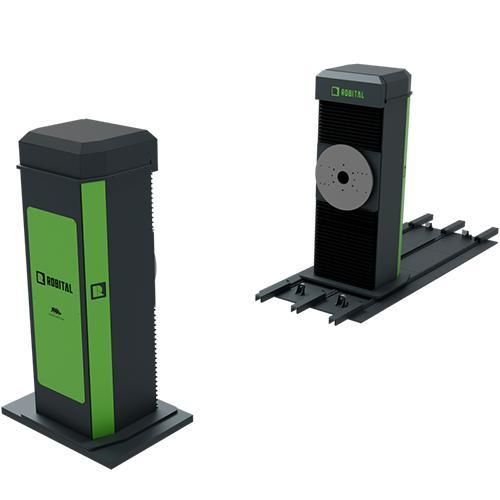

Vertical positioner THZL

rotary2-axisfor robots

Overview
THZL is a series of 2-axis robotic positioners engineered for high-precision welding and automation. Each unit provides one horizontal and one vertical axis and features a sliding tailstock to adapt to different workpiece lengths. The series supports a wide capacity range and multiple drive configurations for integration with industrial robot cells.

Key properties

• 2-axis configuration: 1 horizontal + 1 vertical
• Sliding tailstock for adjustable workpiece support
• Multiple size options: capacity range 1,000–40,000 kg
• Single or double drive configurations (SD / DD)
• Options for solid (SSH) or hollow (HSH) shaft
• Designed for integration with major robot brands

Technical specifications (table)

• Small — Capacity: 1,000 kg; Drive: SD, DD; Drive group options: Q750, Q1000, Q1500, Q2000, Q2500; Shaft: SSH, HSH; Rotational axis max velocity: 15 RPM; Z axis max velocity: 20 mm/s; Allowable inertia: 1,750 kgm²; Torque: 1,750 Nm
• Small — Capacity: 2,500 kg; Drive: SD, DD; Drive group options: Q750–Q2500; Shaft: SSH, HSH; Rotational axis max velocity: 10 RPM; Z axis max velocity: 15 mm/s; Allowable inertia: 2,750 kgm²; Torque: 4,100 Nm
• Medium — Capacity: 5,000 kg; Drive: SD, DD; Drive group options: Q750–Q2500; Shaft: HSH; Rotational axis max velocity: 7.5 RPM; Z axis max velocity: 10 mm/s; Allowable inertia: 8,000 kgm²; Torque: 9,000 Nm
• Medium — Capacity: 7,500 kg; Drive: SD, DD; Drive group options: Q750–Q2500; Shaft: HSH; Rotational axis max velocity: 7.5 RPM; Z axis max velocity: 8 mm/s; Allowable inertia: 12,500 kgm²; Torque: 13,000 Nm
• Large — Capacity: 10,000 kg; Drive: SD, DD; Drive group options: Q1000, Q1500, Q2000, Q2500, Q3000, Q3500; Shaft: HSH; Rotational axis max velocity: 6 RPM; Z axis max velocity: 5 mm/s; Allowable inertia: 22,500 kgm²; Torque: 19,000 Nm
• Large — Capacity: 15,000 kg; Drive: SD, DD; Drive group options: Q1000–Q3500; Shaft: HSH; Rotational axis max velocity: 6 RPM; Z axis max velocity: 3 mm/s; Allowable inertia: 40,000 kgm²; Torque: 29,000 Nm
• XLarge — Capacity: 20,000 kg; Drive: SD, DD; Drive group options: Q2000, Q2500, Q3000, Q3500, Q4000, Q4500; Shaft: HSH; Rotational axis max velocity: 4 RPM; Z axis max velocity: 3 mm/s; Allowable inertia: 55,000 kgm²; Torque: 38,000 Nm
• Xlarge — Capacity: 30,000 kg; Drive: DD; Drive group options: Q2000–Q4500; Shaft: HSH; Rotational axis max velocity: 4 RPM; Z axis max velocity: 2.5 mm/s; Allowable inertia: 77,500 kgm²; Torque: 57,000 Nm
• 2Xlarge — Capacity: 40,000 kg; Drive: DD; Drive group options: Q2000–Q4500; Shaft: HSH; Rotational axis max velocity: 3.5 RPM; Z axis max velocity: 2 mm/s; Allowable inertia: 110,000 kgm²; Torque: 77,000 Nm

Notes / Legend

• *1 SD: Single Drive | DD: Double Drive
• *2 SSH: Solid Shaft | HSH: Hollow Shaft

Robot Brand Codes

• AB: ABB | CO: COMAU | FA: FANUC | HY: HYUNDAI | KA: KAWASAKI | KU: KUKA | NA: NACHI | OT: OTC | PA: PANASONIC | ST: STAUBLI | YA: YASKAWA | XX: OTHER SERVO MOTOR

Customization & Compatibility

• Available customization: additional accessories, color options, and customer-specific branding
• Integration options: single or double drive, multiple drive group packages (Q-series)
• Compatible with major industrial robot brands for welding and automation cells

Technical characteristics

• Axes: 2 (1 horizontal + 1 vertical)
• Tailstock: sliding tailstock for adjustable workpiece positioning
• Capacity range: 1,000–40,000 kg depending on size
• Available sizes: Small, Medium, Large, XLarge, Xlarge, 2Xlarge
• Drive configurations: SD (Single Drive) or DD (Double Drive)
• Shaft options: SSH (Solid Shaft) or HSH (Hollow Shaft)
• Rotational axis max velocity: approx. 3–15 RPM depending on size
• Z axis max velocity: approx. 2–20 mm/s depending on size
• Drive group codes: Q750–Q4500 (various options)
• Allowable inertia and torque vary by configuration; consult factory for exact values
