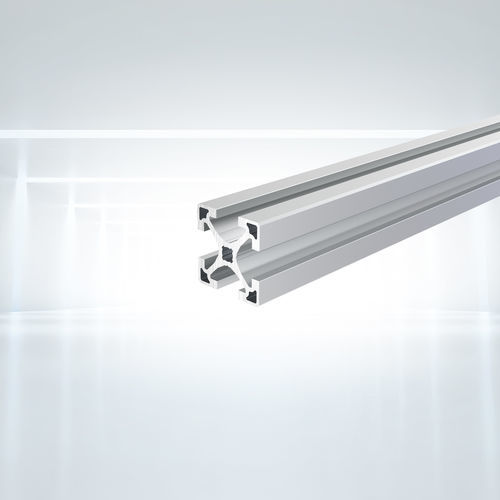

Aluminum profile PIL 4040 seriesT-slotsquarefor conveyor frames
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Configuration
- square, T-slot
- Applications
- for machine frames and housings, for machine guards, for conveyor frames, for shelving, for transport technology
- Other characteristics
- lightweight, extruded
- Width
40 mm
(1.575 in)- Height
40 mm
(1.575 in)
Description
Overview
Aluminum extrusion profile PIL 4040 for modular constructions and machine frames. 14 mm T-slot compatible across the 40 mm extrusion series. Clear anodized finish; material EN AW-6063-T66.
Applications
Available variants
Downloads
Technical specifications
Aluminum extrusion profile PIL 4040 for modular constructions and machine frames. 14 mm T-slot compatible across the 40 mm extrusion series. Clear anodized finish; material EN AW-6063-T66.
Applications
- Machine guarding and enclosures
- Lightweight machine frames
- Workstations and assembly cells
- Conveyor and material-flow systems
- Shelves, racks and transport trolleys
Available variants
- Extrusion 40x40, cut to length, M8 tapped both ends — SKU: PIL4040SNN
- Extrusion 40x40, stock length 6050 mm — SKU: PIL4040NNN
- Extrusion 40x40, pack 80 units, stock length 6050 mm — SKU: PIL4040PAC
Downloads
- Catalog17_Extrusion and Fastening Technology (PDF)
- Catalog16.5_Technical appendix_Extrusion (PDF)
- Catalog16.5_Technical appendix_Fastener (PDF)
- Robotunits_Folder_EN_web (PDF)
Technical specifications
- Brand: Robotunits
- Model: PIL 4040
- Nominal size: 40 x 40 mm
- Slot: 14 mm T-slot
- Material: EN AW-6063-T66, clear anodized
- Section modulus W_x = W_y: 4.3 cm3
- Second moment of area I_x = I_y: 8.6 cm4
- Torsional moment of inertia I_t: 0.7 cm4
- Cross-sectional area A: 554.6 mm2
- Weight: 1.530 kg/m
