Anodized aluminum profile PIL 4140 series

aluminumaluminum alloysquare

Product

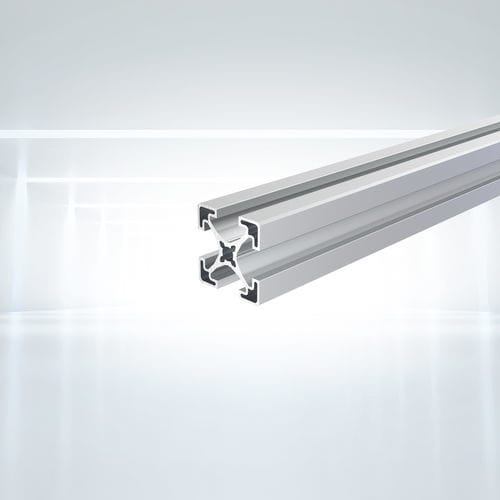

Robotunits Lean Line extrusion 40x40, universally applicable lightweight aluminium profile for construction of machine frames, guardings, shelving and similar applications.

Application

• machine guardings
• enclosures
• safety fence panels
• light weight machine frames
• workstations
• shelves, racks, trolleys (MRO equipment)

Variants / Articles (examples)

• Extrusion 40x40 Lean Line, cut to length, M8 tapped on both ends, 50mm deep — SKU: PIL4140SNN
• Extrusion 40x40 Lean Line, stock length 6050mm — SKU: PIL4140NNN
• Extrusion 40x40 Lean Line, 80 units, stock length 6050mm — SKU: PIL4140PAC

Downloads (available documents)

• Catalog17_Extrusion and Fastening Technology (PDF)
• Catalog16.5_Technical appendix_Extrusion (PDF)
• Catalog16.5_Technical appendix_Fastener (PDF)
• Robotunits_Folder_EN_web (PDF)

CAD / 3D data
CAD data available via the embedded PartCommunity CAD viewer (CAD download requires account/login).

Characteristics / Technical specifications

• Model / part number: PIL 4140
• Profile: 40x40 Lean Line
• Material: EN AW-6063-T66 clear anodized aluminium
• Section modulus W_x = W_y: 3.3 cm3
• Geometrical moment of inertia I_x = I_y: 6.5 cm4
• Geometrical moment of inertia against torsion I_t: 0.6 cm4
• Cross sectional area A: 431.0 mm2
• Weight per meter: 1.160 kg
