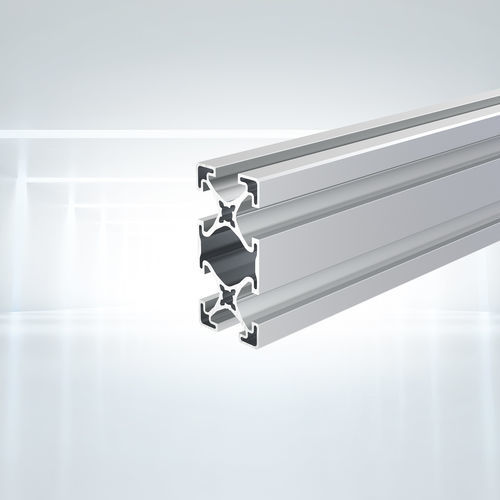

Aluminum profile PIL 4180 series

anodized aluminumrectangularfor machine frames and housings

Application

• Machine guardings
• Enclosures
• Safety fence panels
• Lightweight machine frames
• Workstations
• Shelves, racks, trolleys (MRO equipment)

Product overview
40x80 Lean Line aluminium extrusion profile (PIL 4180) for modular framing and light-structural applications. Designed to reduce weight and material costs compared with heavier profiles while providing standardised T-slot interfaces for quick assembly.

Technical data
Material: EN AW-6063-T66 clear anodized aluminium
Section modulus W_x: 11.9 cm3
Section modulus W_y: 6.4 cm3
Moment of inertia I_x: 47.4 cm4
Moment of inertia I_y: 12.8 cm4
Torsional moment of inertia I_t: 5.9 cm4
Cross sectional area A: 790.8 mm2
Weight per meter: 2.140 kg

Available articles / variants

• Extrusion 40x80 Lean Line, cut to length, M8 tapped on both ends, 50 mm deep — SKU: PIL4180SNN
• Extrusion 40x80 Lean Line, stock length 6050 mm — SKU: PIL4180NNN
• Extrusion 40x80 Lean Line, pack of 40 units, stock length 6050 mm — SKU: PIL4180PAC

CAD / Drawings
2D drawing and CAD data available for integration into design tools (CAD downloads provided on the product page).

Specifications / technical characteristics

• Model: PIL 4180
• Product name: 40x80 Lean Line
• Nominal size: 40 x 80 mm (Lean Line)
• Material: EN AW-6063-T66, clear anodized
• Cross-sectional area: 790.8 mm2
• Weight: 2.140 kg/m
• Section modulus: W_x = 11.9 cm3; W_y = 6.4 cm3
• Moments of inertia: I_x = 47.4 cm4; I_y = 12.8 cm4; I_t = 5.9 cm4
