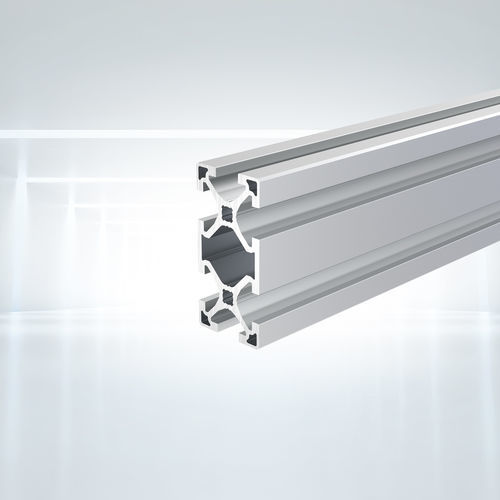

Anodized aluminum profile PIL 4080 series

aluminum alloyrectangularfor machine frames and housings

Application

• Universally applicable for machine guarding and structural assemblies
• Enclosures and machine frames
• Safety fence panels and doors
• Workstations and assembly cells
• Shelves, racks and trolleys (MRO equipment)
• Material handling and conveyor systems

Available articles / variants

• Extrusion 40x80, cut to length, M8 tapped on both ends, 50 mm deep — SKU: PIL4080SNN
• Extrusion 40x80, stock length 6050 mm — SKU: PIL4080NNN
• Extrusion 40x80, pack of 40, stock length 6050 mm — SKU: PIL4080PAC

Product information
Material: EN AW-6063-T66 clear anodized aluminum
Section modulus W_x: 15.4 cm3
Section modulus W_y: 8.4 cm3
Area moment of inertia I_x: 61.6 cm4
Area moment of inertia I_y: 16.8 cm4
Torsional moment of inertia I_t: 9.3 cm4
Cross sectional area A: 1013.2 mm2
Weight per meter: 2.780 kg


CAD & Downloads
CAD data for the profile (2D/3D) is available on the product page (embedded viewer and downloads). Product-related catalogs and technical appendices are available as downloadable PDF documents.

Notes on variants & availability
The product is offered in multiple article variants (cut-to-length, stock lengths, pack quantities). Availability, prices and CAD downloads may require an account/login. Stock status and price are shown per article on the product page.

Technical specifications

• Nominal profile: 40 x 80 mm
• Material: EN AW-6063-T66, clear anodized
• Section modulus W_x: 15.4 cm3
• Section modulus W_y: 8.4 cm3
• Area moment of inertia I_x: 61.6 cm4
• Area moment of inertia I_y: 16.8 cm4
• Torsional moment of inertia I_t: 9.3 cm4
• Cross-sectional area A: 1013.2 mm2
• Weight: 2.780 kg/m
