Anodized aluminum profile PIL 8080 series

aluminumaluminum alloysquare

Product overview

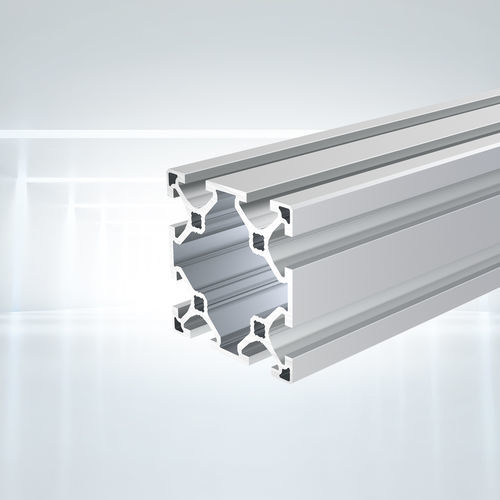

Aluminum profile 80x80, model PIL 8080. Modular T-slot extrusion designed for machine frames, workstations and structural assemblies.

Model code
PIL 8080

Application

• Machine frames
• Workstations
• Machine guarding and enclosures
• Shelves, racks and trolleys (MRO equipment)
• Conveyor frames and bases

Available article variants

• Extrusion 80x80, cut to length, M8 tapped on both ends, 50 mm deep — SKU: PIL8080SNN
• Extrusion 80x80, stock length 6050 mm — SKU: PIL8080NNN
• Extrusion 80x80, pack of 25 units, stock length 6050 mm — SKU: PIL8080PAC

Technical data
Material: EN AW-6063-T66 clear anodized aluminum
Section modulus W_x = W_y: 28.0 cm3
Area moment of inertia I_x = I_y: 112.0 cm4
Torsional moment of inertia I_t: 59.5 cm4
Cross-sectional area A: 1547.0 mm2
Weight per meter: 4.280 kg/m

Downloads (product-related)
Catalogs and technical appendices available for the profile family (product catalogues and technical sheets).

CAD / drawings
2D drawing and 3D CAD models available for download (access may require registration).

Characteristics / technical specifications

• Product name: Extrusion 80x80
• Model code: PIL 8080
• Material: EN AW-6063-T66 (clear anodized)
• Section modulus (W_x, W_y): 28.0 cm3
• Moment of inertia (I_x, I_y): 112.0 cm4
• Torsional moment of inertia (I_t): 59.5 cm4
• Cross-sectional area (A): 1547.0 mm2
• Weight: 4.280 kg/m
• T-slot design: 14 mm T-slot for standard modular fittings
• Available formats: cut-to-length, full bar (6050 mm), pack of 25
