functional handle / door / aluminum / stainless steel
FG14

Add to MyDirectIndustry favorites
Compare this product

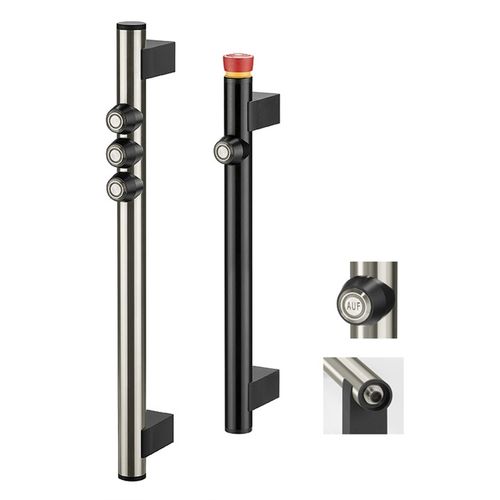

functional handle / door / aluminum / stainless steel functional handle / door / aluminum / stainless steel - FG14
{{requestButtons}}

Characteristics

  • Type:

    functional

  • Applications:

    door

  • Material:

    aluminum, stainless steel

  • Other characteristics:

    with electrical switching function, with emergency stop, rugged, with push button, aluminum profile

  • Size:

    Max.: 480 mm (18.9 in)

    Min.: 406 mm (15.98 in)

Description

The modular design of this handle series allows an individual assembly of the handle with function elements. In order to define the functions of the separate operating devices, each button can be labeled on demand.

Material and surface:
Tube ø 35 x 1.5 mm AlMgSi 0,5; fine ground and black anodized or alternatively made of stainless steel, material no. 1.4301; fine ground. Tube holders of glassball reinforced polyamid PA6, black, half-matt with fine structure.

Function elements:
Push buttons with red resp. green illuminated ring. Other LED colours on request.

Connection:
12-pole, coupling with 10 m ready made cable available as accessory.

Protection class:
IP 65 (with screwed coupling).

Note:
Other handle lengths and designs on request.
