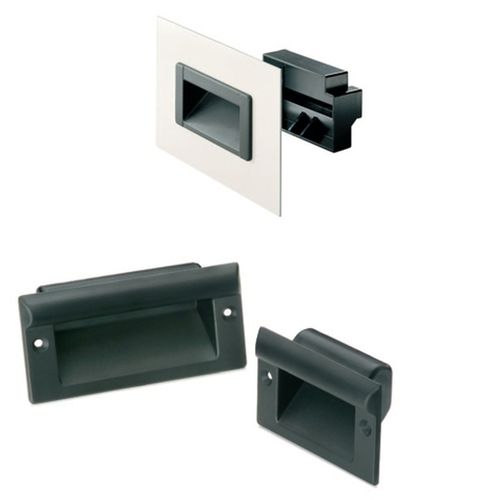

Recessed handle KM

transportplastic

These ergonomically formed trough inset handles are suitable for different wall thicknesses. A stable fitting of the handle is guaranteed at all time. Design features: Simple and secure screw mounting for wall thicknesses from 1-5 mm. Material and surface: Polyamide PA6, glass ball reinforced, half-matt with fine structure on visible surface, in 4 different colour versions. Mounting: The front section will be set into the recess of the housing wall first. Now the rear section can be pushed onto the front section, which is projected into the housing interior. Afterwards the handle will be fixed in position by three screws. Scope of supply: Includes galvanized Phillips recess raised cheese head screw DIN 7985. Stress resistance: min. 1000 N.
