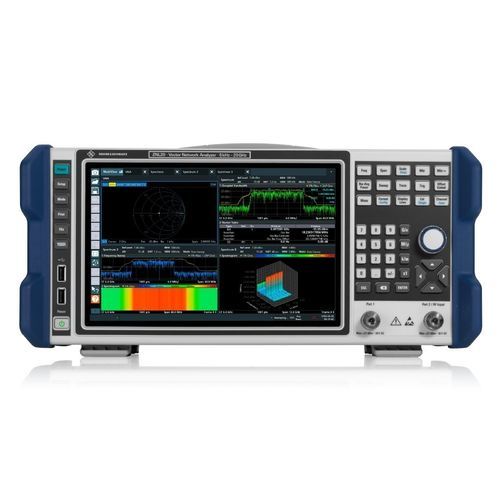

Signal analyzer R&S®ZNL

vector networkspectrumbenchtop

The R&S®ZNL helps reduce investment costs with a unique option concept. The base models support frequencies from 5 kHz to 20 GHz and they can be expanded to include a fully integrated spectrum analyzer and support RF power meters. Furthermore, spectrum analysis supports a CW signal generator option. Instead of investing in multiple instruments, research labs, service centers, universities and production facilities can use a single, compact instrument that offers even higher measurement speeds and better RF performance than dedicated instruments in comparable classes. Key facts Wide frequency range from 5 kHz up to 20 GHz High dynamic range and low trace noise 2-port vector network analyzer for bidirectional measurements Optional fully integrated spectrum analyzer on hardware board for up to 26.5 GHz Compact, versatile and cost-efficient 3-in-1 analyzer Benchtop VNA with a small footprint The R&S®ZNL combines a vector network analyzer, a spectrum analyzer and a power meter in a single, compact box. The all-in-one instrument is ideal for development, production and service environments with constantly changing test requirements. Convenient calibration Built-in guided user interface wizards Rohde & Schwarz has manual calibration kits and automatic calibration units for faster and more convenient calibration. Guided user interface wizards for S-parameters and calibration standards on the R&S®ZNL ensure a convenient and hassle-free setup.
