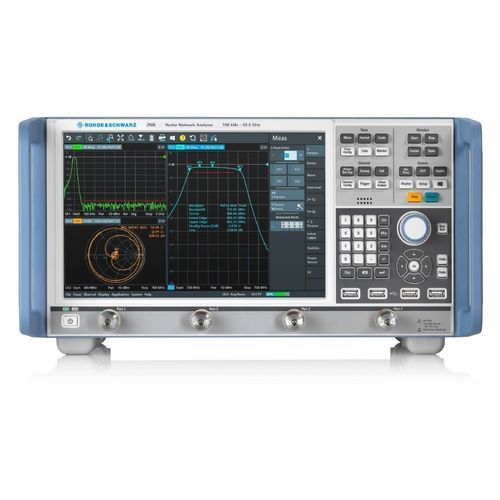

Signal analyzer R&S®ZNB

vector networkharmonicintermodulation

With frequency ranges of 9 kHz to 4.5/8.5 GHz and 100 kHz to 20/26.5/40/43.5 GHz, the network analyzers are designed for mobile radio, electronic goods as well as aerospace and defense applications and can also be used in high-speed printed circuit board designs. The R&S®ZNB is ideal for developing, producing and servicing RF components such as amplifiers, mixers, filters and cables. Key facts Frequency range from 9 kHz to 43.5 GHz Two or four ports Wide dynamic range of up to 140 dB Short sweep times of 4 ms for 401 points Wide power sweep range of 98 dB RF performance Designed to meet the highest standards The R&S®ZNB receivers combine high-power handling capacity with high sensitivity and low trace noise. The R&S®ZNB base unit typically has a 140 dB dynamic range. The R&S®ZNB8-B5x option extends the dynamic range to up to 150 dB for measurements between ports. The analyzer measures S-parameters with very low magnitude and phase drifts typically lower than 0.01 dB/°C and 0.15°C. A calibrated R&S®ZNB allows precise measurements over several days without recalibration.
