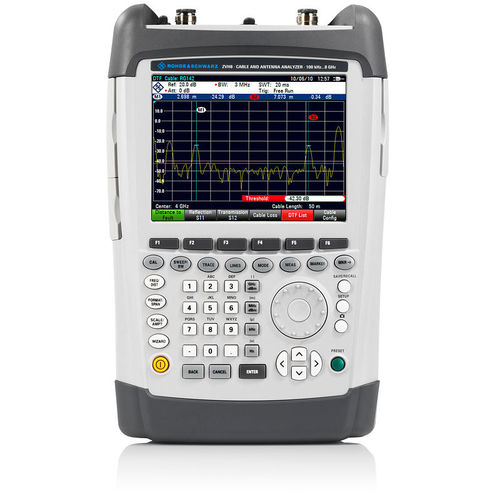

Signal analyzer R&S®ZVH

for electrical networkscommunication networkpower

The R&S®ZVH is a rugged, handy cable and antenna analyzer, designed for use in the field. The low weight and simple operation make it indispensable for anyone who needs to make efficient measurements outdoors when installing and maintaining antenna systems. Key facts 100 kHz up to 3.6 GHz/8 GHz 100 dB (typ.) dynamic range for transmission measurements Fast and consistent measurements with the preconfiguration wizard Remote control via free software or app Rugged, splash-proof housing for use in the field Fast and accurate Fast and accurate measurements The wizard function lets users preconfigure test setups before going in the field. Pictures and test instructions can be inserted to aid on-site technicians, speeding up on-site measurements and reducing measurement errors from incorrect parameters or setups. The wizard simplifies complex test sequences and eliminates configuration queries before each test setup. Combination analyzer The R&S®ZVH can be extended by purchasing keycodes licenses. R&S®ZVH-K42 lets the instrument perform 2-port vector network analysis to determine the matching and transmission characteristics for filters, amplifiers, etc. R&S®ZVH-K1 adds spectrum analysis to measure occupied signal bandwidth, field strength and spurious emissions, etc. The analyzer can also handle more functions. It is an ideal, handy tool in the field. Ergonomic design The top handle makes the analyzer easy to carry. It can also be hung on a tower or equipment rack for hands-free operation on site without the need for additional accessories.
