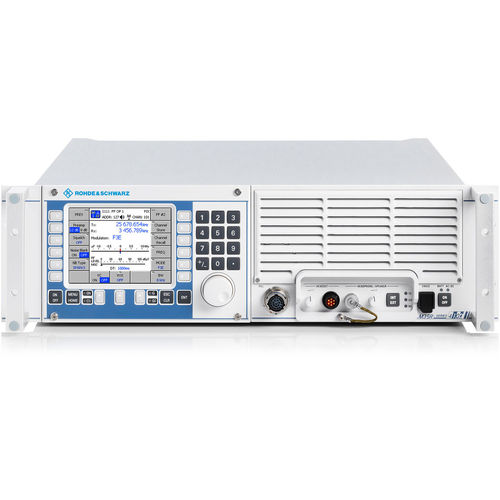

HF transceiver R&S®M3SR

radiofor telecom networksdata transmission

Rohde & Schwarz has developed a state-of-the-art generation of communications systems designed to take HF radio to the next level. HF wideband functionality (in line with MIL-STD-188-110D and STANAG 5069) speeds up HF data transmission to achieve data rates comparable to those attained with SATCOM. Shortwave communications are a resource that can be set up easily, offers extreme reliability and is highly valued by security authorities and organizations as well as military users all over the world. Key facts Frequency range: 1.5 MHz to 30 MHz (TX), 10 kHz to 30 MHz (RX) 150 W, 500 W, 1000 W power classes and standalone receiver High-power classes available: 5000 W and 10 000 W LINK 11, LINK 22, LINK Y support Embedded secure voice and data capability IP for easy integration R&S®IPoA radio transmission R&S®IPoA protocol functionality R&S®IPoA embedded services Alarm messages Short data messages GPS reporting IPoA with STANAG4538 IPoA with WBxDL (up to 48 kHz wideband) Voice over IP, SIP and phone patch Audio and remote control via IP Phone patch Domain connect Interoperable waveforms Interoperable waveforms for multinational operations ALE-2G in line with MIL-STD-188-141B ALE-3G, in line with STANAG4538 ALE-4G in line with MIL-STD-188-141D HF wideband modem in line with MIL-STD-188-110D, STANAG5069 Diverse HF narrow band modems
