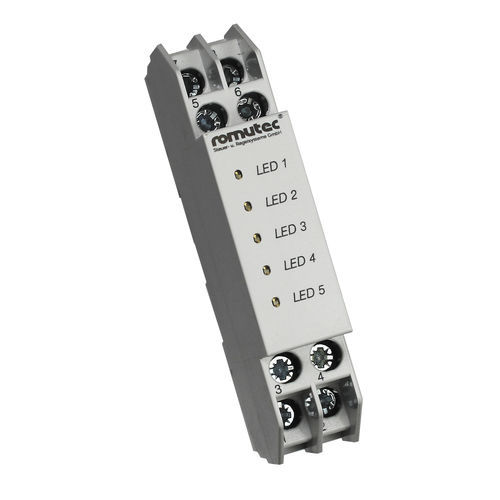

Signaling device FE01

Product information
Functional unit FE01 – 5x status message. The FE01 signalling module is used to signal external operating, status and fault messages (examples: fire dampers, frost, filters, V-belts). The module is equipped with five dual LEDs whose colour (red or green) is selected via jumpers. Special 3-pole jumpers for coding yellow signals are available as accessories. The function of the inputs is configured via jumpers and can be set to closed-circuit with wire-break monitoring or open-circuit (normally open). All LEDs can be linked to trigger a collective message on the FE04 module via a jumper. A collective signalling terminal (terminal X.8) is provided for these signals (24 V DC, max. 100 mA). Jumpers are located inside the module and are replaceable. The enclosure base can be removed from the top with a flat-head screwdriver to access inserts; individual inserts can be removed by careful pulling. Default message texts are fixed but can be customised for an additional charge. Device numbers can be applied.

Key features

• Signalling module with 5 dual LEDs (colour selectable by jumper: red/green)
• Input function selectable by jumper: closed-circuit with wire-break monitoring or open-circuit (NO)
• Collective signal output (terminal X.8) for collective messages, 24 V DC, max. 100 mA
• Internal jumpers for LED colour, input function and collective message configuration
• Removable enclosure base for access and module insertion/removal
• Default message texts fixed; customisation available for an additional charge; device numbering possible

Terminals / Terminal assignment (module position marked as X)

• Terminal X.1: Supply voltage GND
• Terminal X.2: Supply voltage 24 V AC or DC
• Terminal X.3: LED 4 (DI5), control with 24 V AC or DC
• Terminal X.4: LED 5 (DI4), control with 24 V AC or DC
• Terminal X.5: LED 2 (DI3), control with 24 V AC or DC
• Terminal X.6: LED 3 (DI2), control with 24 V AC or DC
• Terminal X.7: LED 1 (DI1), control with 24 V AC or DC
• Terminal X.8: Collective signal output (24 V DC, max. 100 mA) — any LED of this plug-in module connected to CS triggers a collective message on this terminal

Mechanical / Installation notes

• Enclosure base removable from the top with a flat-head screwdriver
• Individual inserts removable by careful pulling after base removal
• Internal jumpers for configuration accessible after opening

Technical specifications

• Model: FE01
• Product number / SKU: 00002990
• Manufacturer / Brand: romutec Steuer- und Regelsysteme GmbH
• Supply voltage: 24 V AC or DC (terminals X.1 = GND, X.2 = 24 V)
• LEDs: 5 dual LEDs, colour selectable via jumpers (red/green); optional 3-pole jumper accessory for yellow coding
• Input control: selectable by jumper — closed-circuit with wire-break monitoring or open-circuit (normally open)
• Collective signal: Terminal X.8, 24 V DC, max. 100 mA
• External dimensions (W x H x D): 17.5 x 90 x 58 mm
• Weight: 0.057 kg
• Enclosure: removable base for module insert access
• Customization: message texts customisable for additional charge; device numbering available
