Alarm module FE04

Product overview

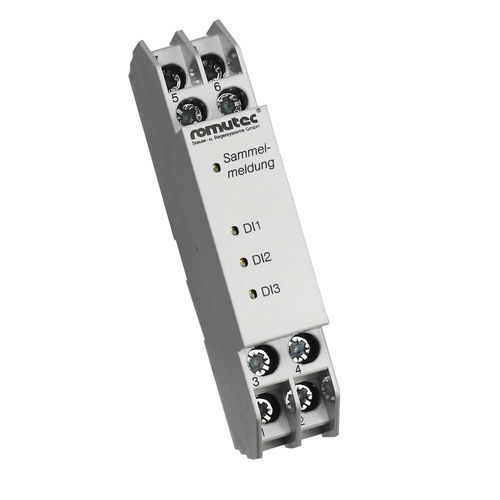

The FE04 collective signalling module forwards collective messages via a potential-free relay contact. It provides three freely configurable LEDs (red/green) which can be assigned to collective signalling. LEDs configured for collective signalling trigger the collective signalling relay through onboard jumpers. A collective signalling terminal for 24V DC signals (max. 100 mA) is also available.

Key features

• Model: FE04
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Product number (SKU): 00002994
• Weight: 0.059 kg
• Supply voltage: 24V AC or DC
• LED control: 24V AC or DC (3 freely configurable LEDs)
• Collective signalling relay contact load: max. 250V AC, 5A, 1250 VA
• Collective signalling terminal (for 24V DC signals): max. 100 mA
• Jumpers: located in the module and changeable to enable LEDs to trigger collective messages
• Customisation: message texts fixed by default but can be customised for an additional charge; device numbers can be applied

Terminal assignments

• Terminal X.1: Supply voltage GND
• Terminal X.2: Supply voltage 24V AC or DC
• Terminal X.3: LED 2 (DI2), control with 24V AC or DC
• Terminal X.4: LED 3 (DI3), control with 24V AC or DC
• Terminal X.5: Collective signalling relay, NC contact
• Terminal X.6: LED 1 (DI1), control with 24V AC or DC
• Terminal X.7: Collective signalling relay, NO contact
• Terminal X.8: Collective signalling relay, COM (common) — contact load max. 250V AC, max. 5A, 1250 VA

Mechanical dimensions & installation
W x H x D: 17.5 x 90 x 58 mm. The enclosure base can be removed using a flat-head screwdriver at the top of the device. Individual inserts can be removed by careful pulling. Jumpers are accessible inside the module for configuration.

Ordering & additional information
Message texts are fixed by default but can be customised to customer requirements for an additional charge. Device numbering can be applied on request. For detailed installation and wiring instructions refer to the manufacturer's documentation or contact romutec Steuer- und Regelsysteme GmbH.
