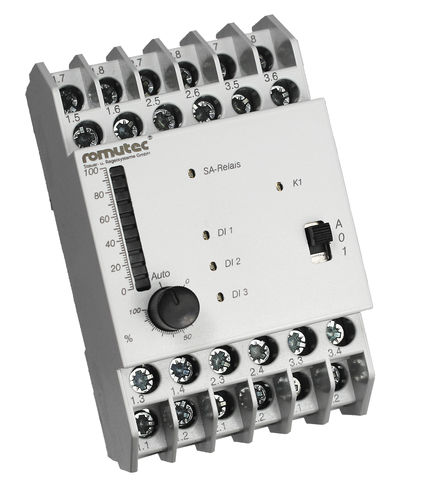

Analog I/O module 3 FE set

RS-485Modbus RTUDIN rail mounted

Product overview
The 3FExxx-Set comprises three functional units (3 × FE0x). Example combination shown: 3FE342. The 4th–6th digit denotes the specific function unit (FE01–FE05). Units are designed for DIN-rail (Hutschiene) mounting.

Included modules / Functional groups

• Function unit FE03 — Analog transmitter module: Provides manual override of the analog control signal for continuous actuators via an onboard potentiometer. DIN-rail mounting.
• Function unit FE04 — Collective alarm module: For forwarding a collective alarm via a potential-free contact. Any LED configured for collective alarm within the system (red or green) triggers the SA-relay. Relay contact rating: up to 250 V AC, 5 A, max. 1250 VA.
• Function unit FE02 — Single-stage drive: Manual control level with emergency function for a single-stage actuator. Built-in slide switch with positions Auto–0–1.

Technical specifications

• Composition: Set of 3 functional units (3 × FE0x)
• Example combination: 3FE342 (4th–6th digit = function unit FE01–FE05)
• Available function units: FE01 to FE05
• Mounting: DIN-rail (Hutschiene)
• FE03 (Analog transmitter): Manual override of analog signal via potentiometer
• FE04 (Collective alarm): Potential-free contact to forward collective alarm; SA-relay contact rated up to 250 V AC, 5 A, max. 1250 VA
• FE02 (Single-stage drive): Manual control with emergency function for single-stage actuator; slide switch Auto–0–1
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Product number (SKU): 00002995
