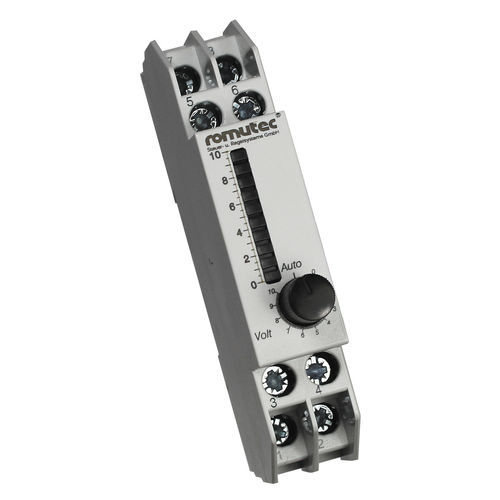

Functional unit FE03 – analogue transmitter module with manual override. The device allows manual override of the analogue output for continuous actuators via an integrated potentiometer. It is mounted on a DIN top-hat rail. The Auto/Manual rotary potentiometer selects the output mode: in Auto the signal is determined by the control system; in Manual the output is adjusted continuously within 0-10V (or 0-20mA) using the potentiometer. A 10-LED bar display indicates the output level. Input and output signal types are independently selectable via internal jumpers (e.g. input 0-10V, output 0-20mA), enabling signal conversion. Factory setting: input and output = 0-10V. Auto feedback is routed through a relay to terminals X.7 (COM) and X.8 (NO); contact is NO by default and can be coded to NC via jumper J3 (observe contact load). Jumpers are located inside the module and can be changed after careful opening using a flat-head screwdriver. Inputs and outputs are not galvanically isolated.

Technical data
Terminal assignments and notes
The terminal numbers follow the module position within the enclosure: designation 3.6 means module slot 3, terminal 6. In the terminal list below the module position is marked as X.

• Terminal X.1: Supply voltage GND
• Terminal X.2: Supply voltage 24V AC or DC
• Terminal X.3: Analogue input GND
• Terminal X.4: Analogue input 0-10V or 0-20mA adjustable via jumper J1
• Terminal X.5: Analogue output GND
• Terminal X.6: Analogue output 0-10V or 0-20mA adjustable via jumper J2
• Terminal X.7: Relay root (COM), max. 250V AC, max. 2A, 62.5VA
• Terminal X.8: Relay contact (NO), can be coded to NC contact using jumper J3

Dimensions
External dimensions: W x H x D 17.5 x 90 x 58 mm

Technical specifications

• Model: FE03
• Function: 1x analogue transmitter / analogue encoder module with manual override
• Output adjustable range: 0-10V or 0-20mA (selectable)
• Input selectable: 0-10V or 0-20mA via jumper J1
• Output selectable: 0-10V or 0-20mA via jumper J2
• Bar display: 10 LEDs indicating output level
• Auto/manual selector (rotary potentiometer) for automatic signal or manual adjustment
• Auto feedback routed via relay to terminals X.7 (COM) and X.8 (NO) – relay can be coded to NC via jumper J3; relay rating max. 250V AC, max. 2A, 62.5VA
• Inputs and outputs are not galvanically isolated
• Supply voltage: 24V AC or DC
• Mounting: DIN top-hat rail
• External dimensions: 17.5 x 90 x 58 mm
• Weight: 0.06 kg
